Fujitsu PRIMERGY RX2520 M1 - Removing the TPM; Re-Installing the TPM

RX2520 M1 Upgrade and Maintenance Manual 357
System board and components
Ê "Locating the defective server" on page 49
Ê "Shutting down the server" on page 51
Ê "Disconnecting power cords" on page 52
Ê "Getting access to the component" on page 53
Ê "Removing the fan box" on page 168
14.4.3.2 Removing the TPM
Ê "Removing the TPM" on page 351
Ê Leave the TPM spacer on the system board when removing the defective
TPM.
14.4.3.3 Re-installing the TPM

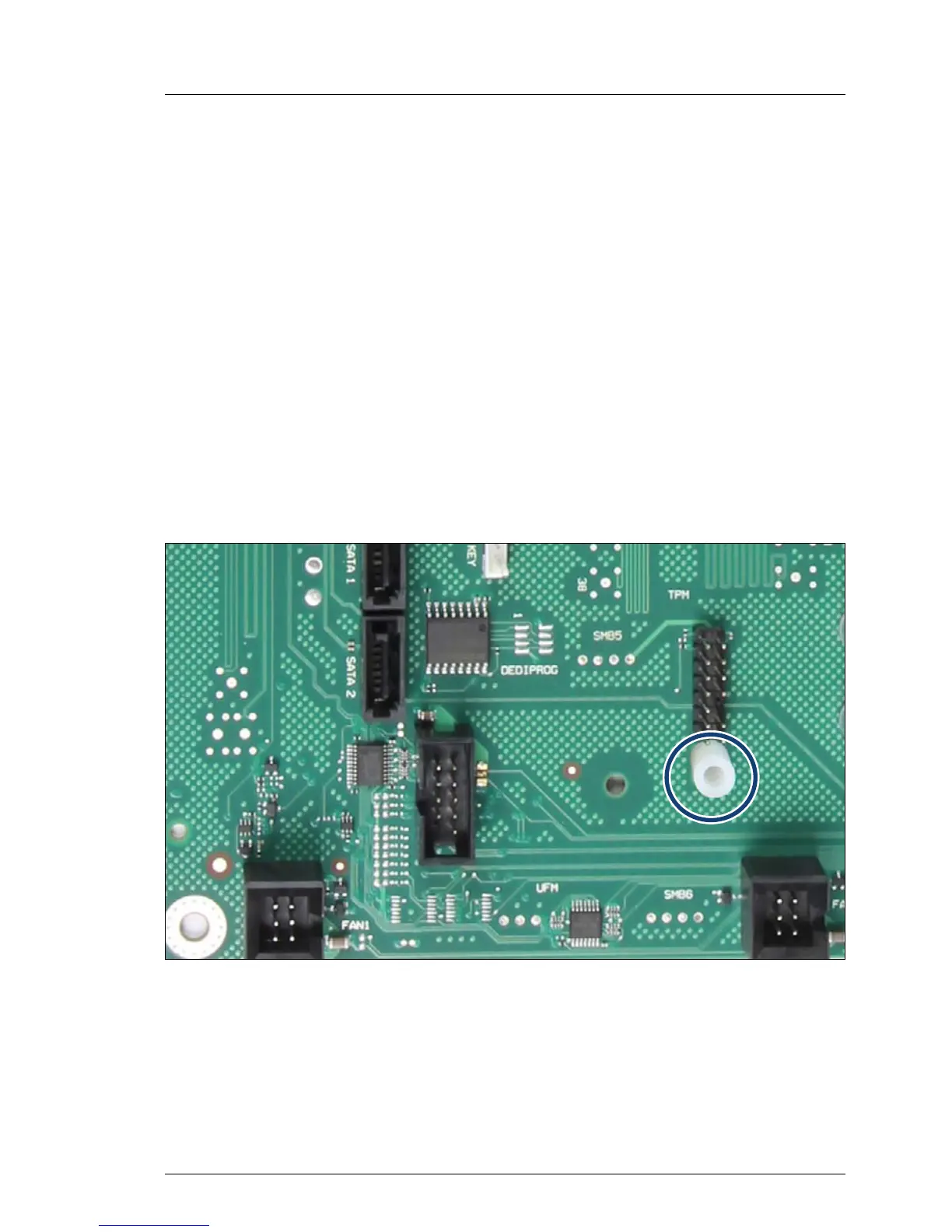

Figure 243: TPM spacer
Ê The TPM spacer is already present on the system board.
Ê "Installing the TPM" on page 346
