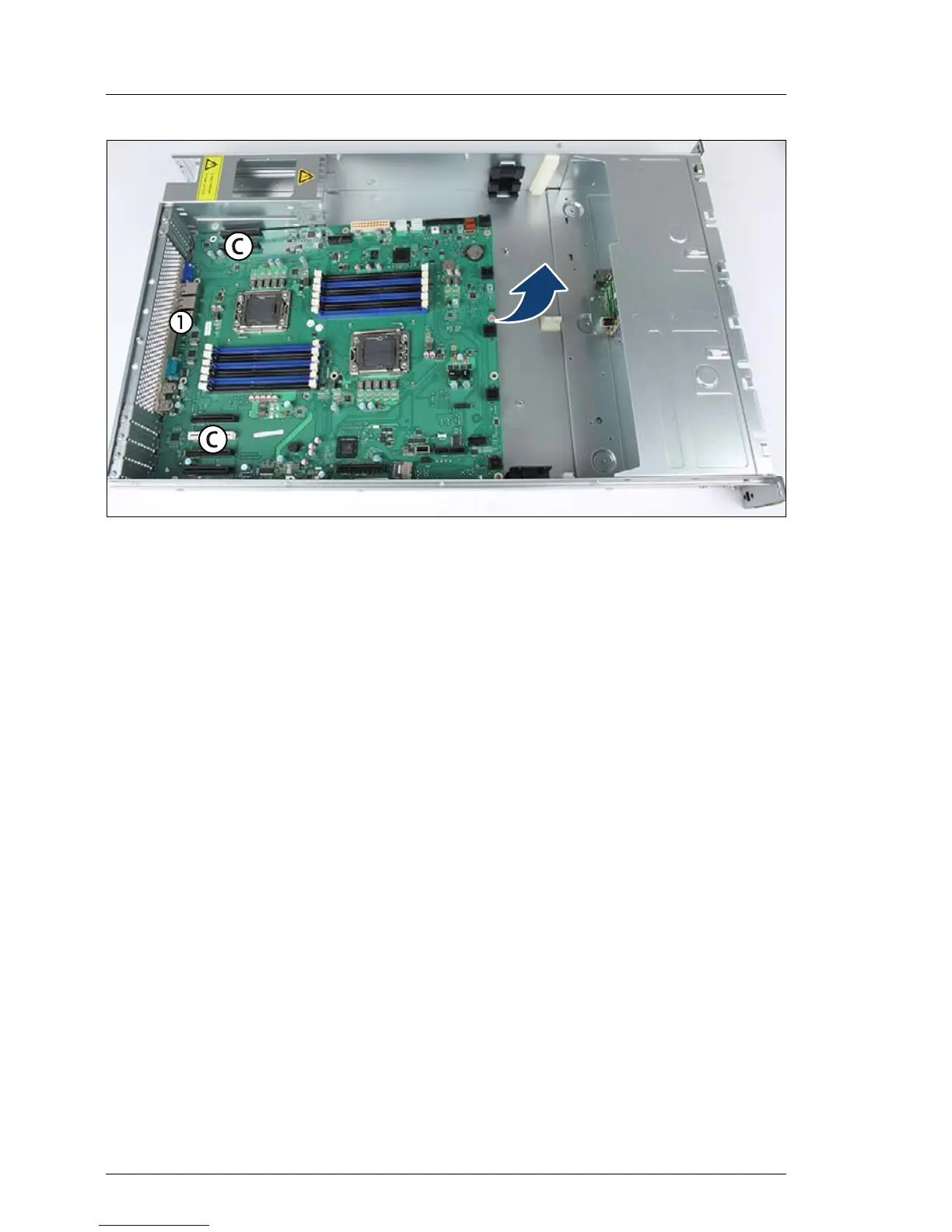

Figure 248: Removing the system board
Ê Slightly lift up the system board by the memory module ejectors and a PCI
slot in order to detach it from the centering bolts (C).
Ê Carefully shift the system board towards the server front until the plug shells
disengage from the cut-outs in the connector panel (1).
Ê Hold the defective system board by the memory module ejectors and a PCI
slot and at a slight angle lift it out of the chassis.
Ê "Removing the TPM" on page 354
Ê Remove the UFM spacer from the systemboard.
