RX2520 M1 Upgrade and Maintenance Manual 367
System board and components

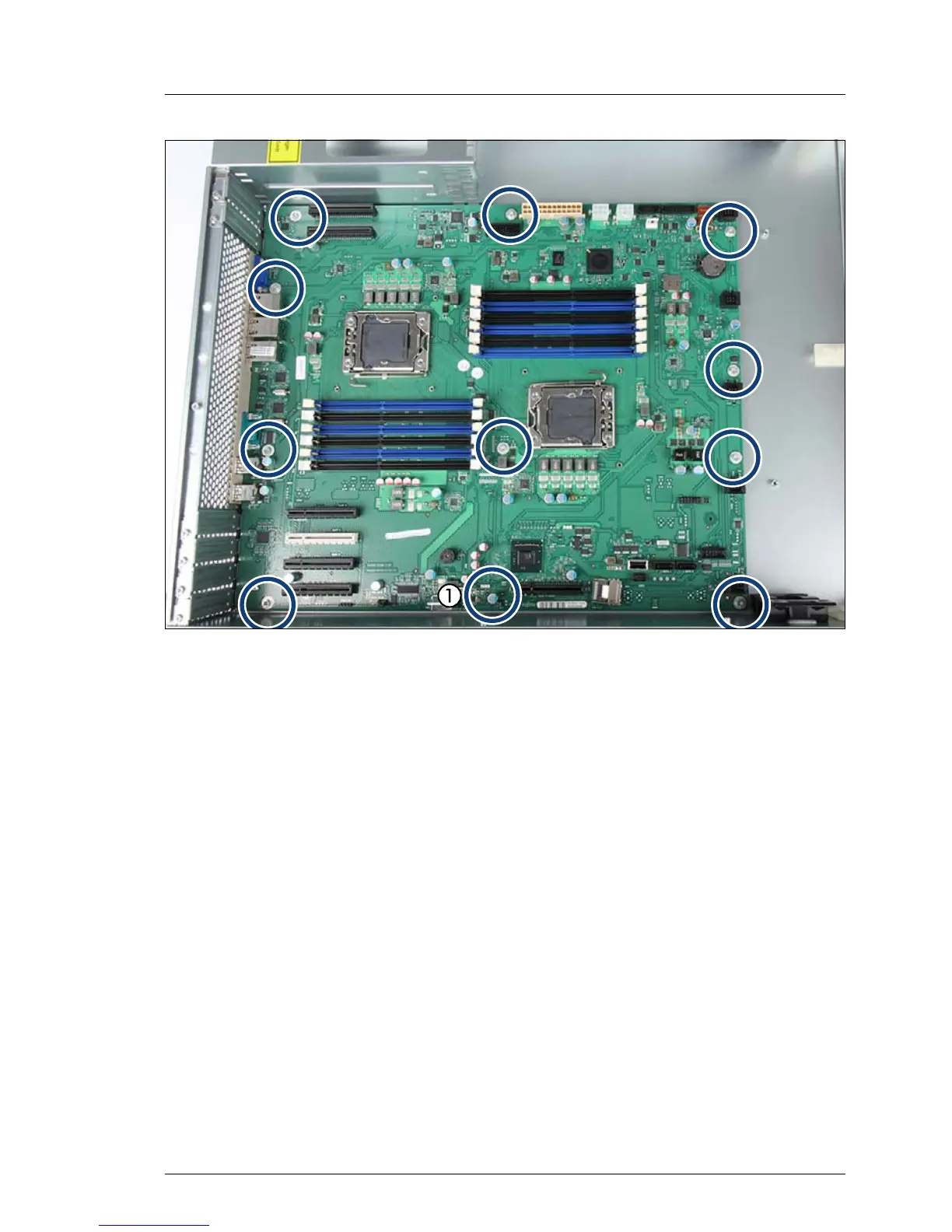

Figure 247: Detaching the system board
Ê Remove 11 screws from the system board (see circles).
I If there was an SAS RAID controller installed the screw (1) is already
removed.
