324 Upgrade and Maintenance Manual RX2520 M1
Front panel and external connectors
Multicage

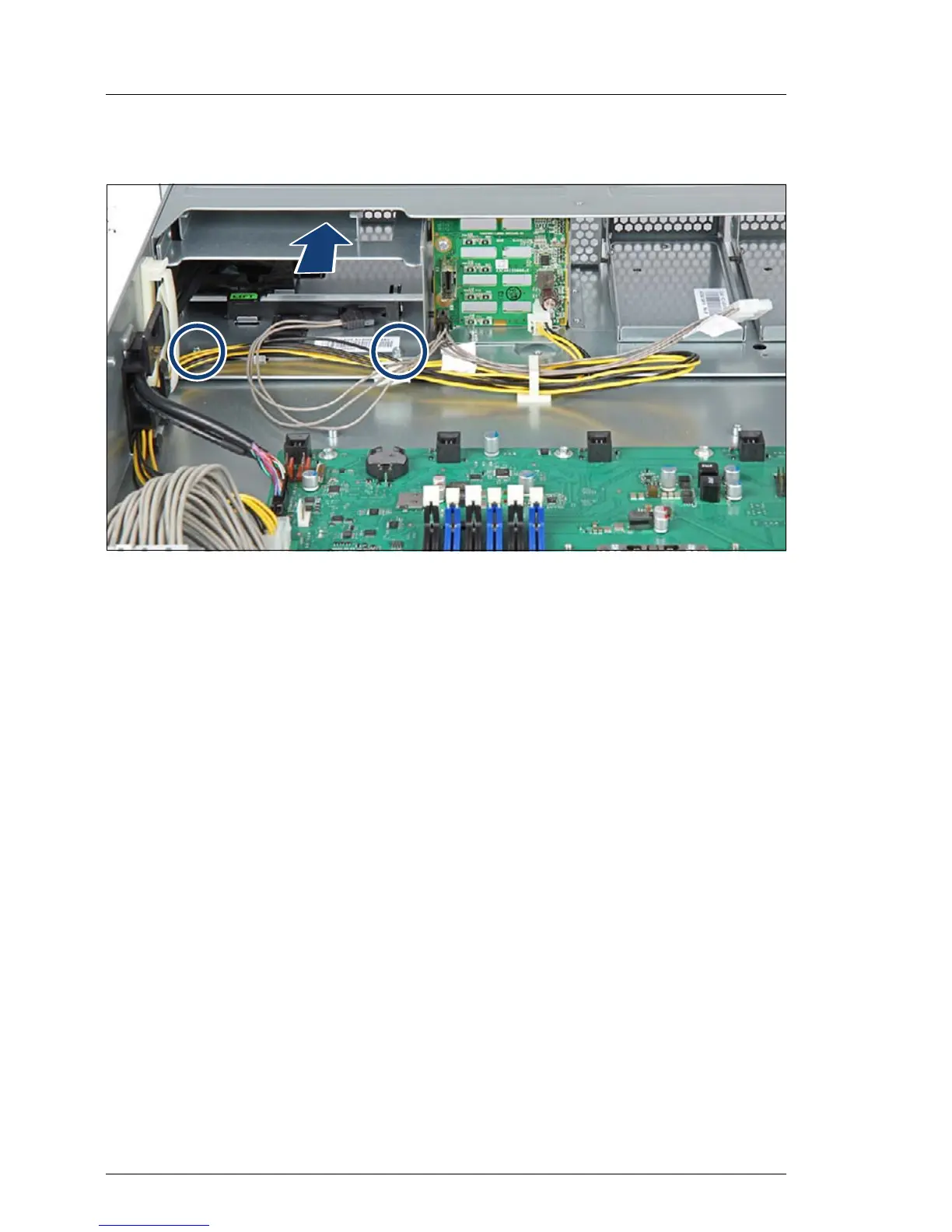

Figure 215: Removing the multicage
Ê Remove the two screws.
Ê Push the multicage out of the chassis frontward.
Ê Remove the installed modules.
– "Removing the front panel module" on page 313
– "Removing the ODD" on page 268
– "Removing the LSD module" on page 259
