Front panel and external connectors

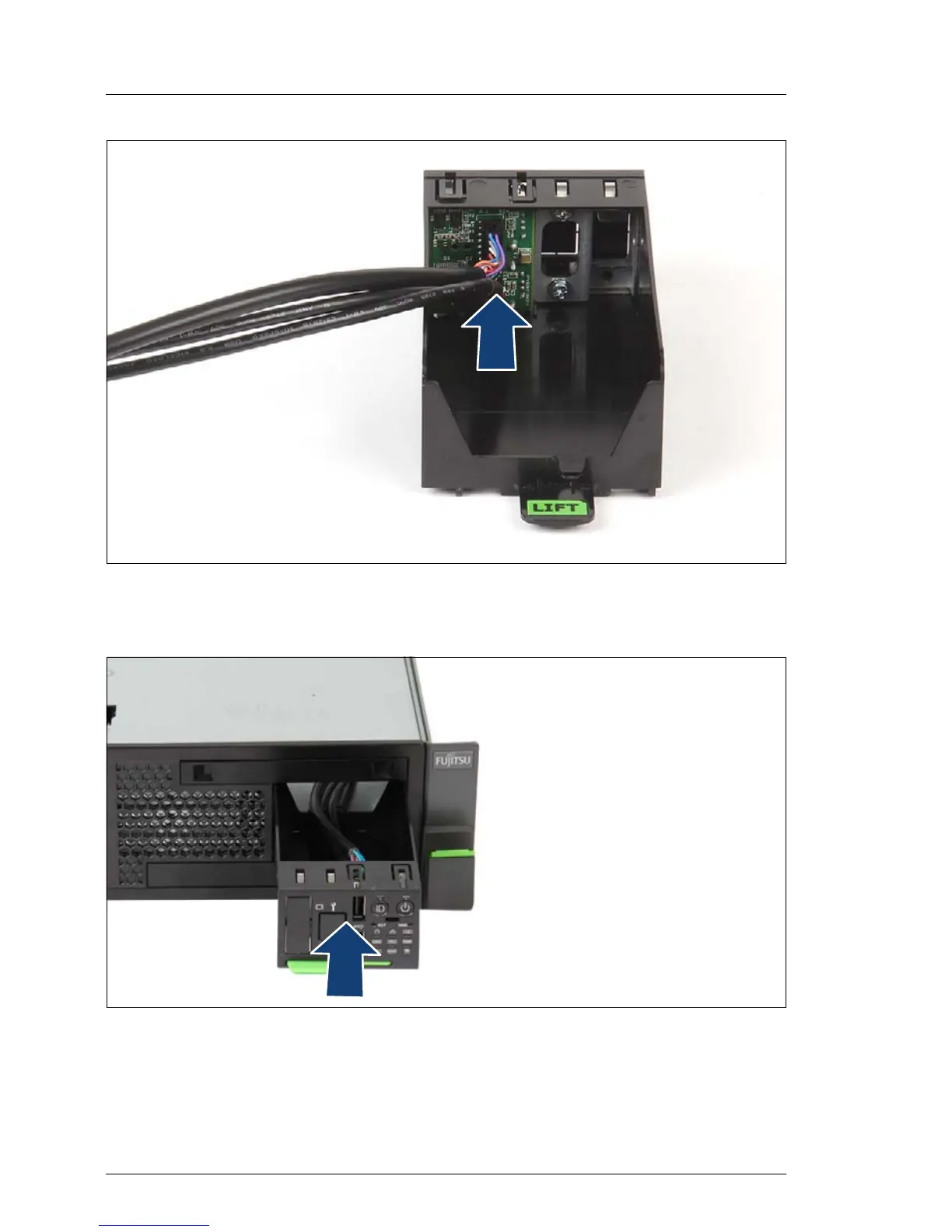

Figure 206: Connecting the front panel cable to the front panel module
Ê Connect the front panel cable to the new front panel module as shown.
Figure 207: Connecting the front panel cable
Ê Insert the front panel module into the front panel cage and carefully push in
until it locks in place.
