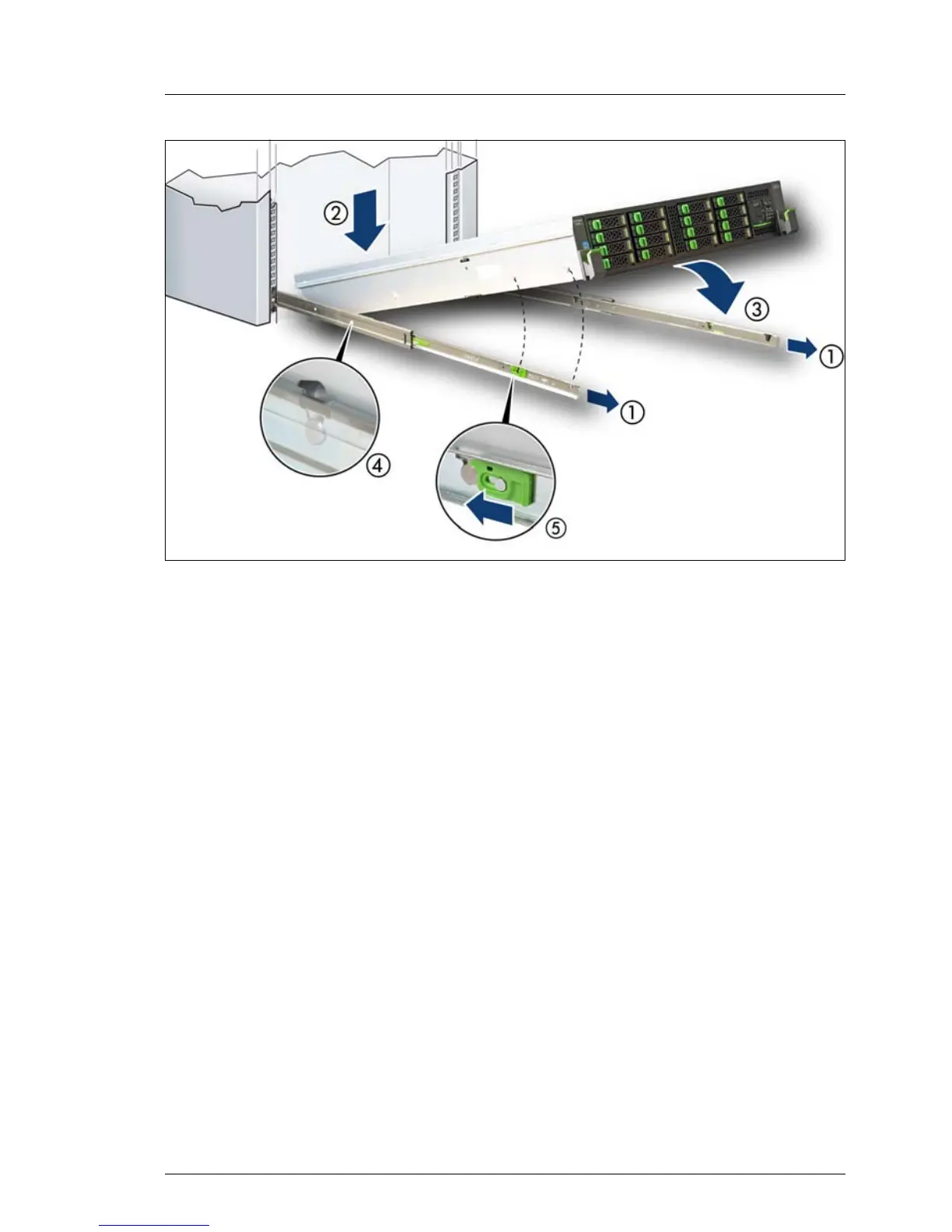

Figure 10: Mounting the server onto the rack rails
Ê Fully extend the telescopic rails until they lock in place (1).
Ê At a slight angle, lower the server onto the rear mounting point on the
telescopic rails (2).
Ê Fold down the server (3). Ensure that all six rack mounting bolts are properly
seated in the mounting points on the telescopic rails (4) and that the locking
bars engage (5).
