Front panel and external connectors

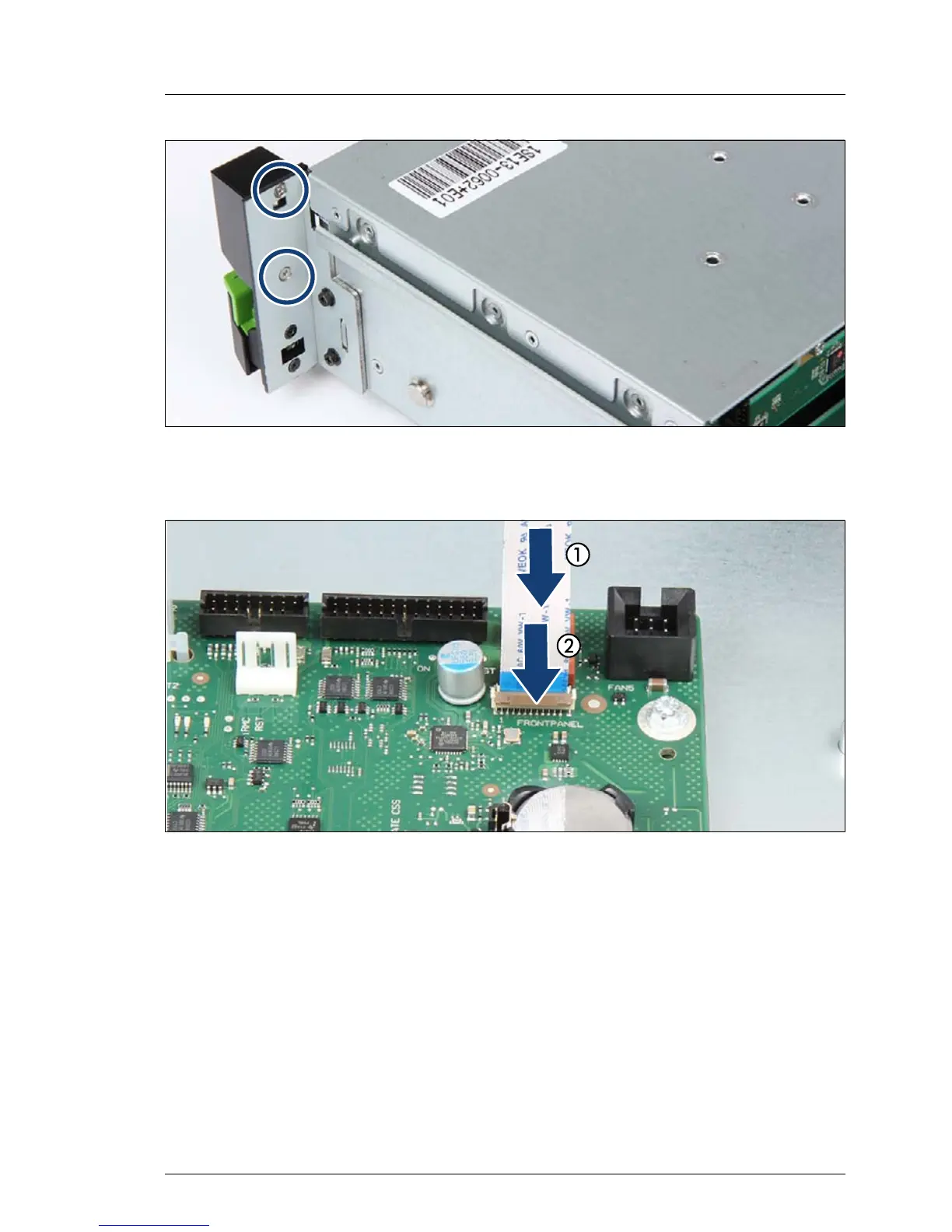

Figure 224: Inserting the screws
Ê Fasten the front panel with two screws.
Figure 225: Connecting the front panel cable
Ê Insert the cable into the connector on the system board (1).
Ê Close the connector (2).
