348 Upgrade and Maintenance Manual RX2520 M1
System board and components

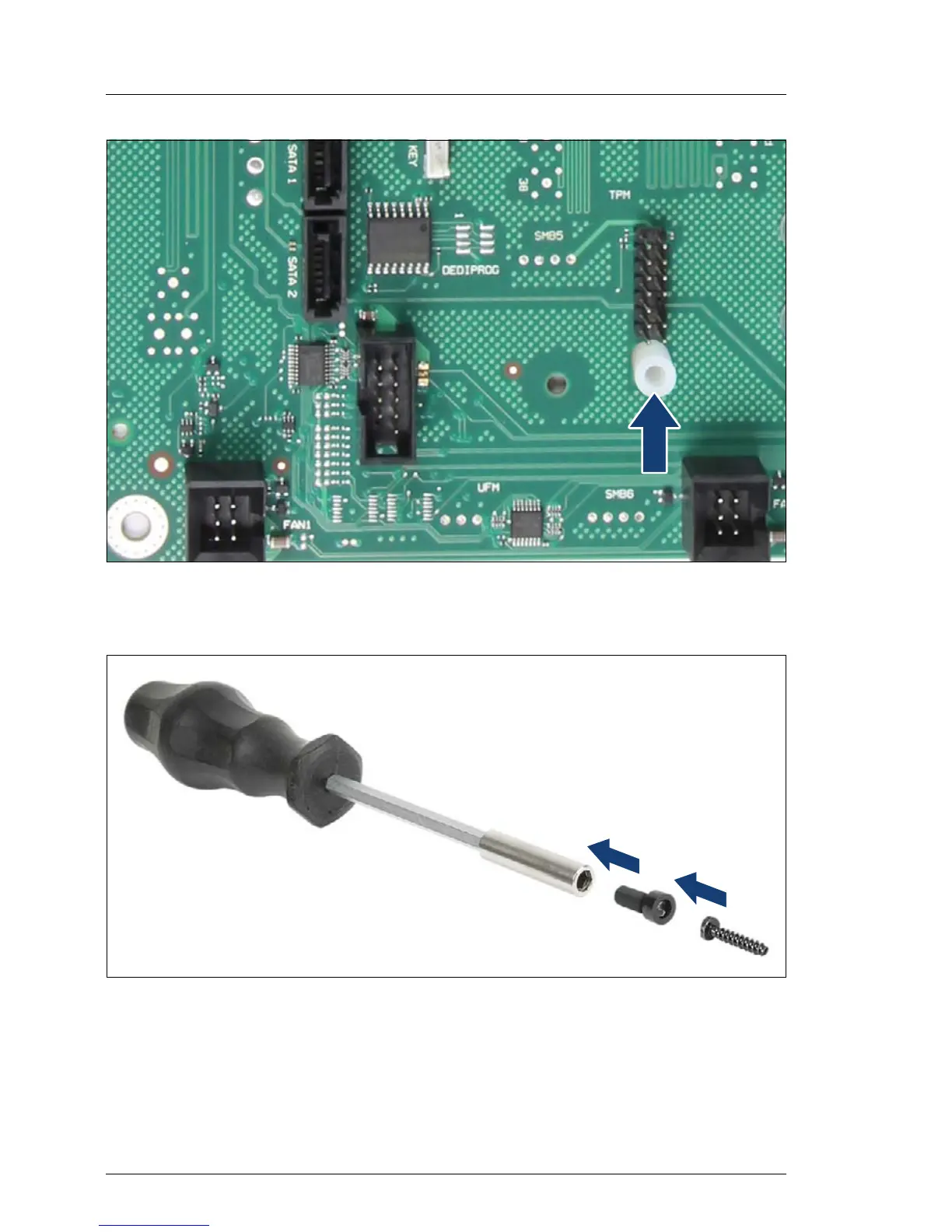

Figure 238: Installing the TPM spacer
Ê Snap the TPM spacer into the cut-out in the system board.
Figure 239: TPM bit insert
Ê Attach the TPM bit insert or TPM module fixing tool (Japanese market) to a
bit screw driver.
