RX2520 M1 Upgrade and Maintenance Manual 149
Hard disk drives / solid state drives

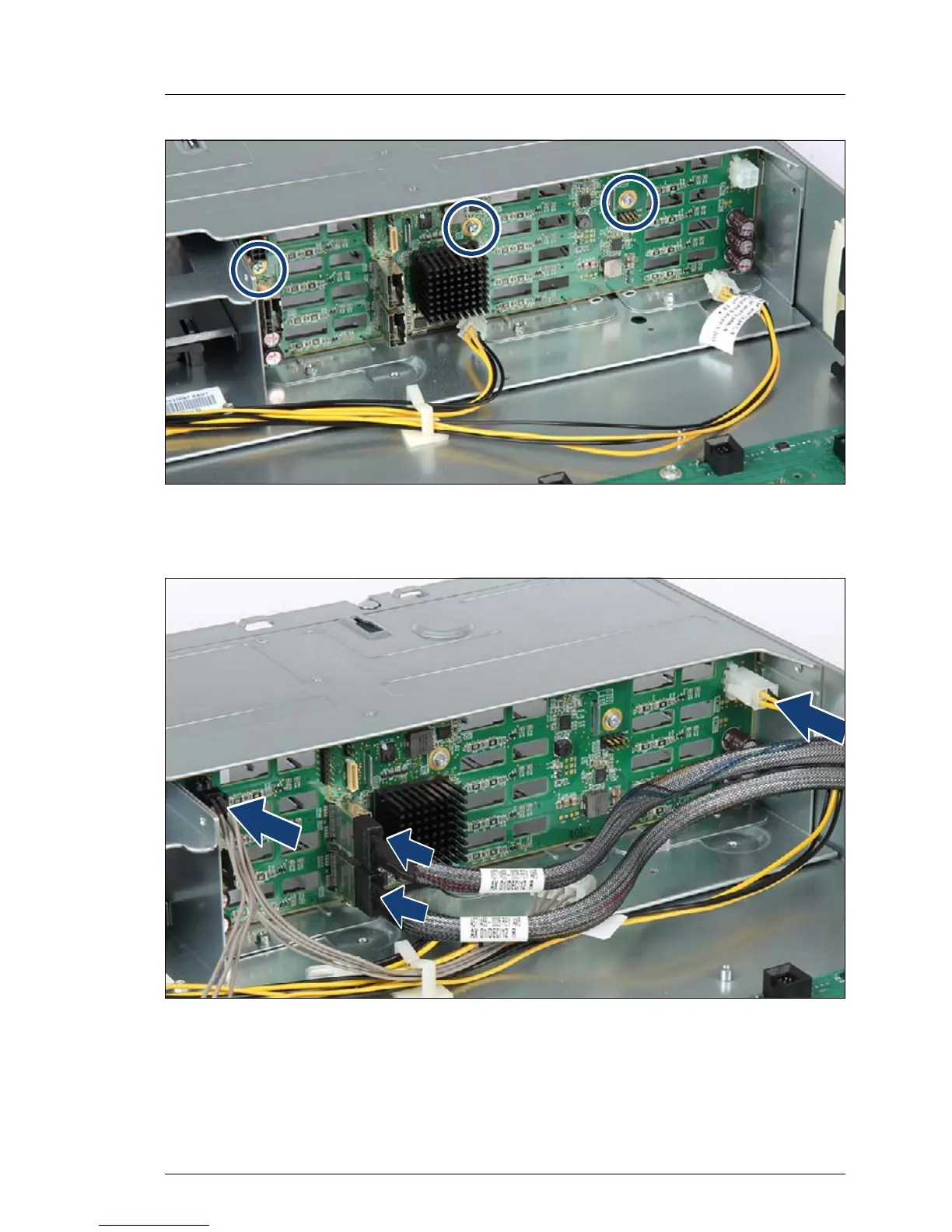

Figure 56: Fastening the 2.5-inch HDD SAS backplane (A)
Ê Secure the 12x 2.5-inch HDD SAS backplane with the three screws.
Figure 57: Connecting cables to the 12x 2.5-inch HDD SAS backplane
Ê Reconnect all cables to the 12x 2.5-inch HDD SAS backplane:
– Power cable C4 connected to SAS backplane connector X15
– Power cable C5 connected to SAS backplane connector X17
