160 Upgrade and Maintenance Manual
RX2520 M1
Hard disk drives / solid state drives

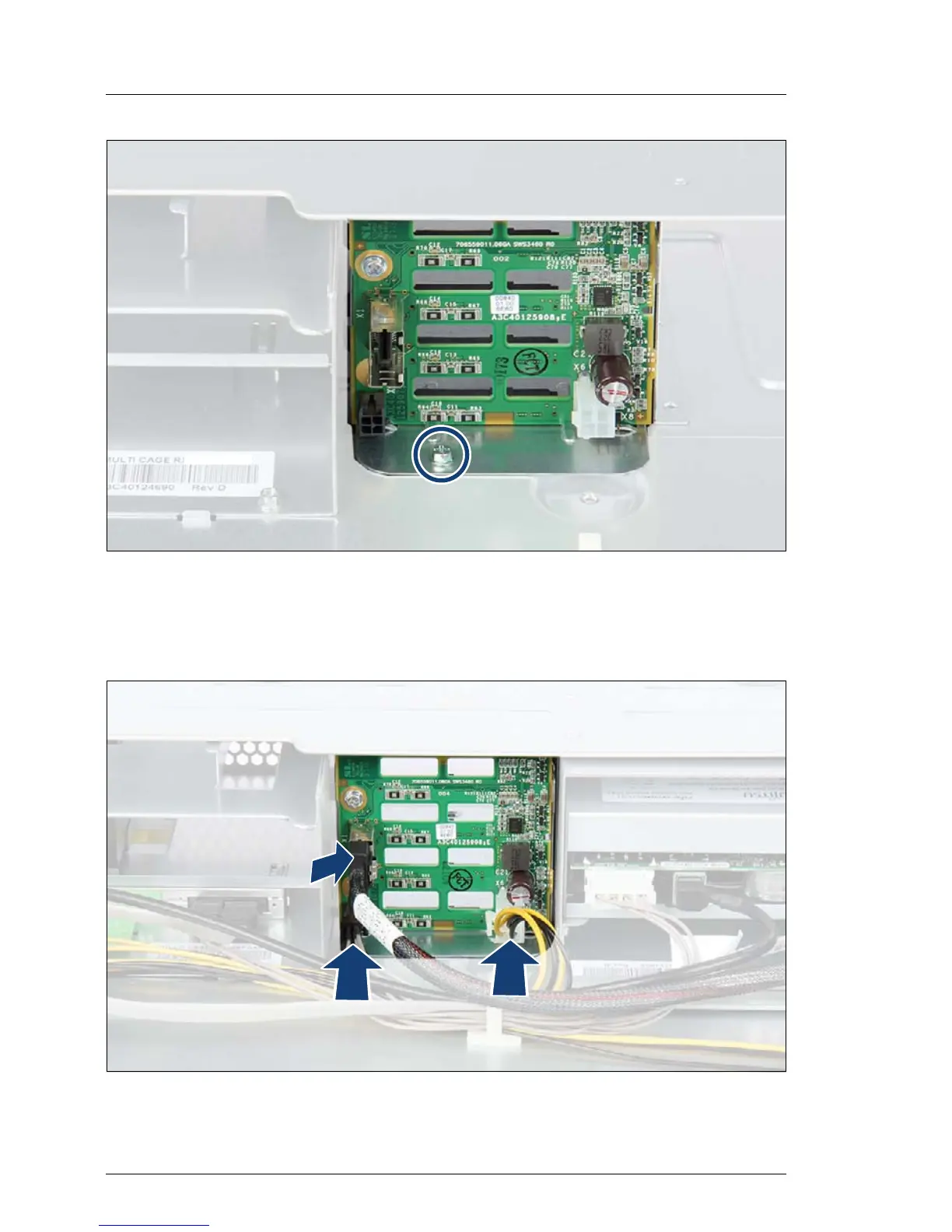

Figure 68: Removing the 4x 2.5-inch HDD SAS backplane
Ê Insert the HDD cage.
Ê Fasten the HDD cage with the screw.
Figure 69: Reconnecting cables to the 4x 2.5-inch HDD SAS backplane
Ê Reconnect all cables to the 2.5-inch HDD SAS backplane:
