174 Upgrade and Maintenance Manual RX2520 M1
Expansion cards and backup units

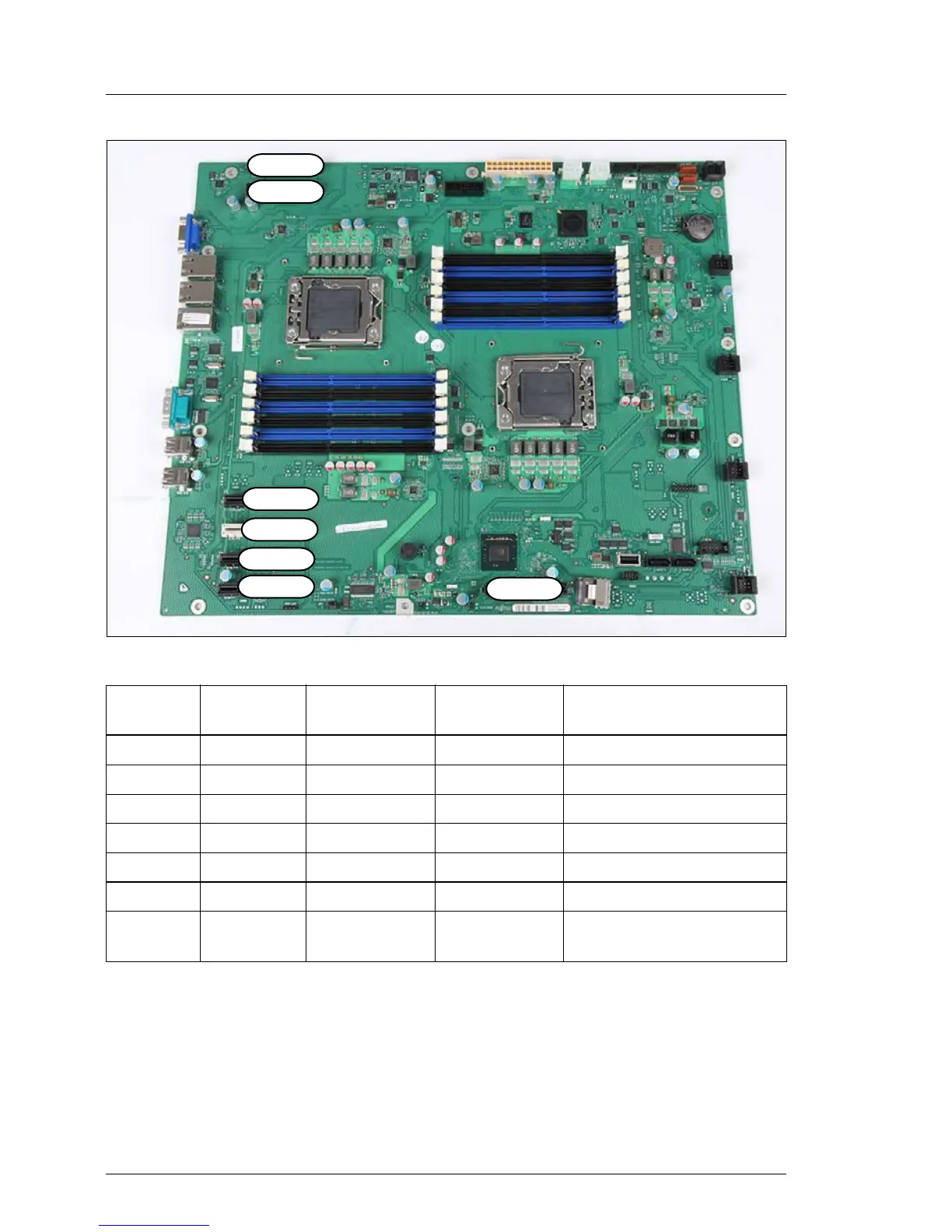

Figure 77: PCI slot overview
PCI slot Type
Mechanical
connector
Electrical
interface
Function
1 PCIe Gen 2 x8 x4 CPU1
2 PCIe Gen 3 x8 x8 CPU1
3 PCIe Gen 3 x8 x8 CPU1
4 PCIe Gen 3 x8 x8 only available with CPU2
5 PCIe Gen 3 x8 x8 only available with CPU2
6 PCIe Gen 3 x8 x8 only available with CPU2
7 PCIe Gen 3 x8 x8
slot for SAS RAID controller
CPU1
Slot 1
Slot 6
Slot 5
Slot 4
Slot 3
Slot 2
Slot 7
