Fujitsu PRIMERGY RX2520 M1 - Page 187

RX2520 M1 Upgrade and Maintenance Manual 187
Expansion cards and backup units

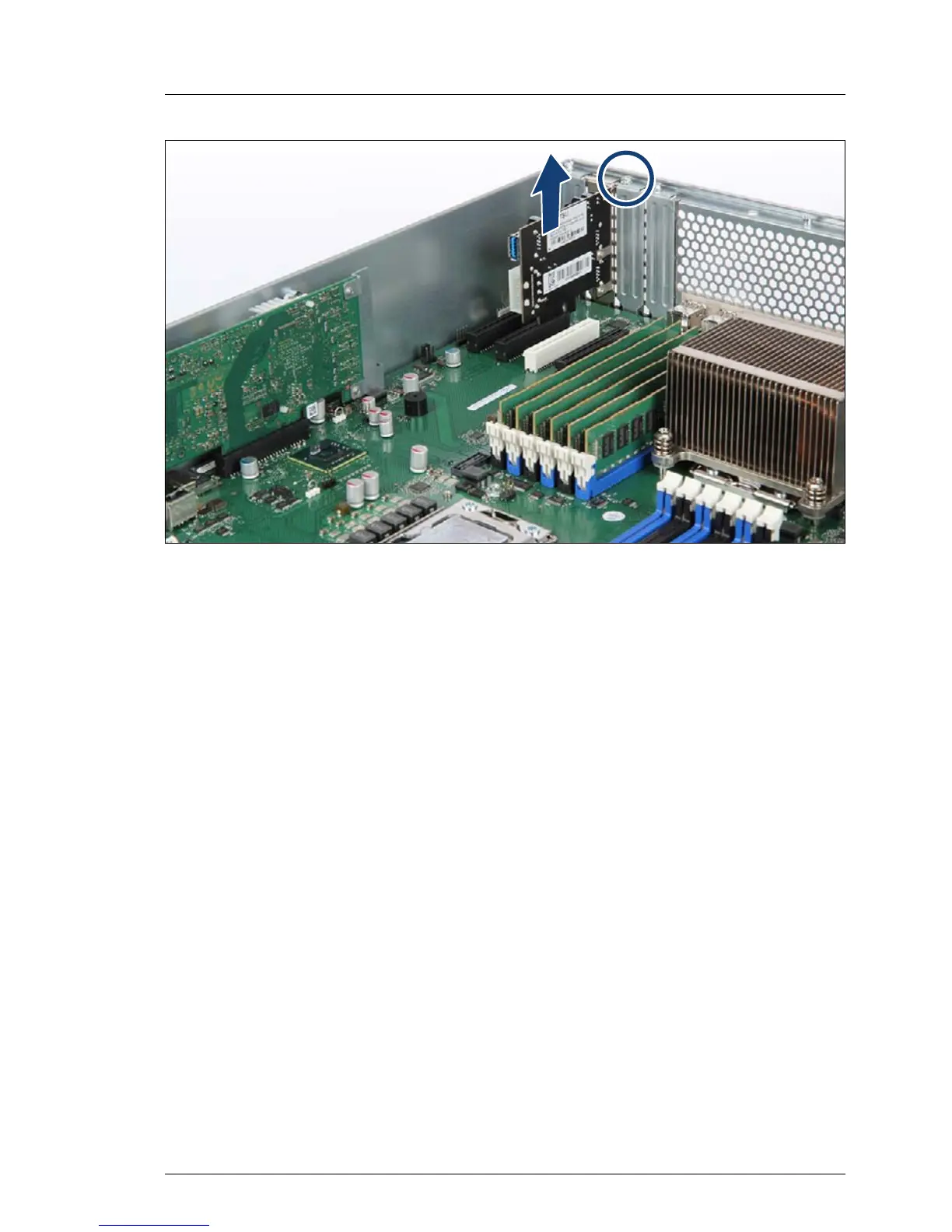

Figure 87: Removing an expansion card
Ê If applicable, "Removing an SFP+ transceiver module" on page 216.
Ê Remove the screw.
Ê Carefully remove the expansion card from its slot.
