Fujitsu PRIMERGY RX2520 M1 - Page 200

200 Upgrade and Maintenance Manual RX2520 M1
Expansion cards and backup units

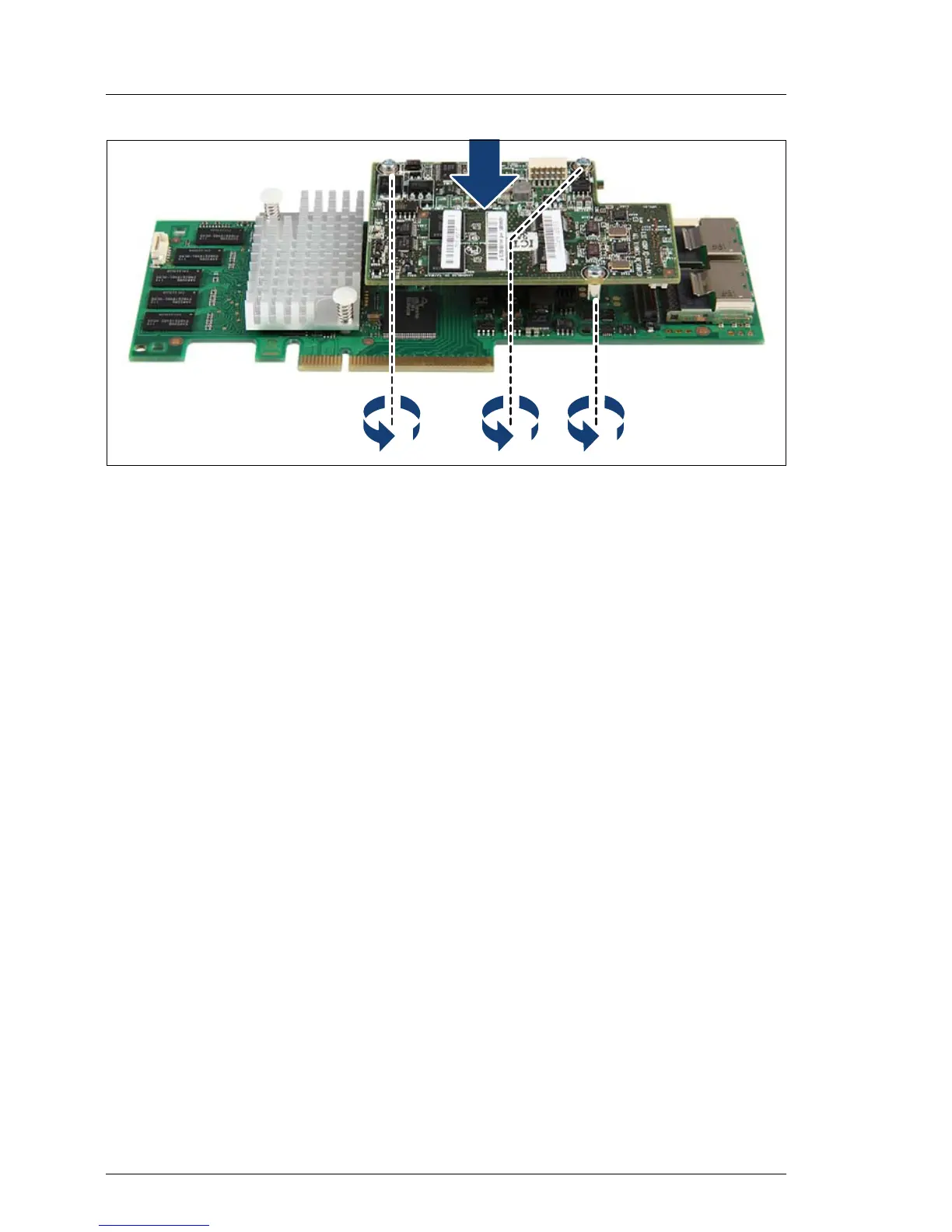

Figure 95: Mounting the TFM kit (A)
Ê Fit the spacer bolts on the TFM on SAS RAID controller.
Ê Secure the TFM on the controller with the three screws .
