RX2520 M1 Upgrade and Maintenance Manual 217
Expansion cards and backup units

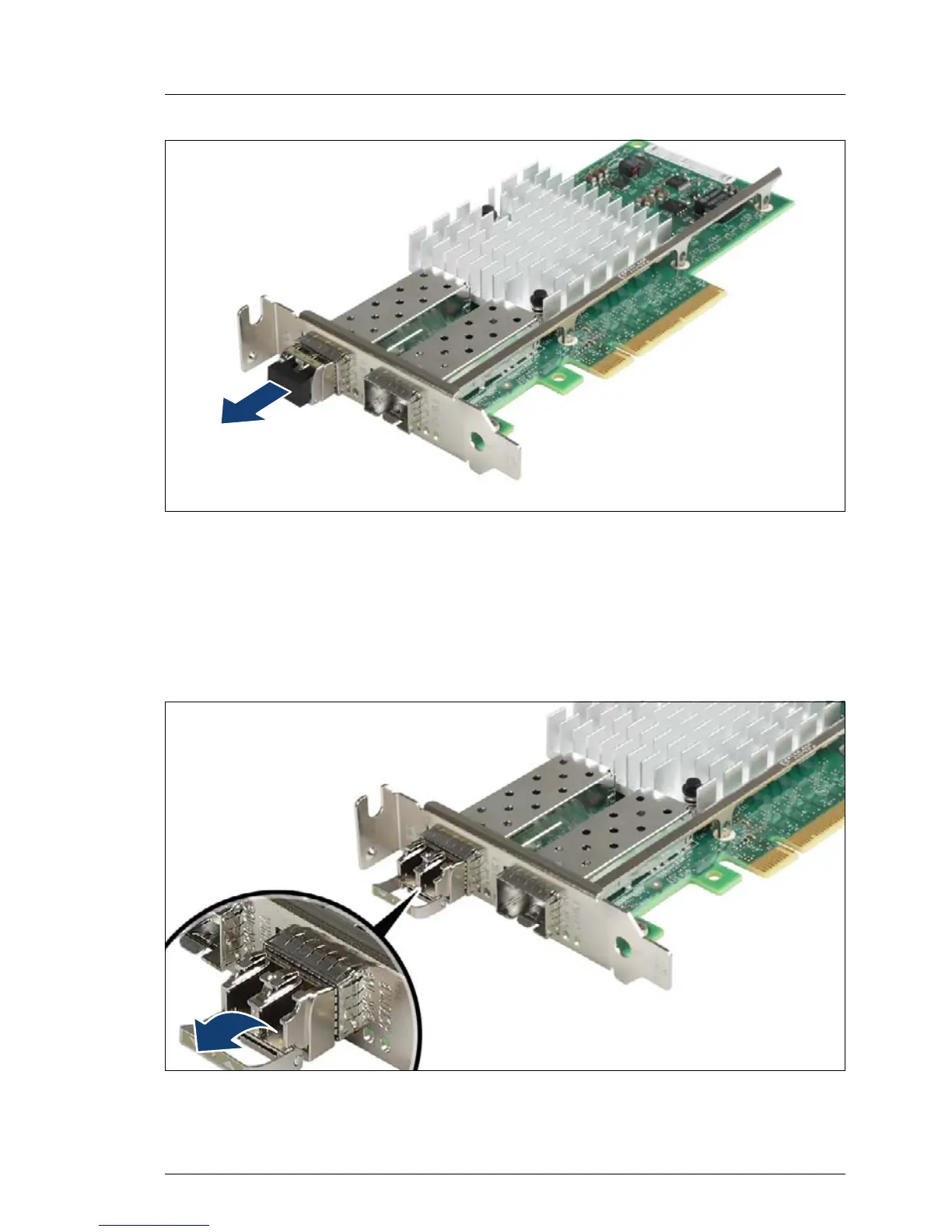

Figure 113: Removing the protective optical port plug
Ê If present, remove the protective optical port plug from the SFP+ transceiver
module.
V CAUTION!
Save the protective port plug for future use.
Figure 114: Unlatching the locking bail
