RX2520 M1 Upgrade and Maintenance Manual 269
Accessible drives

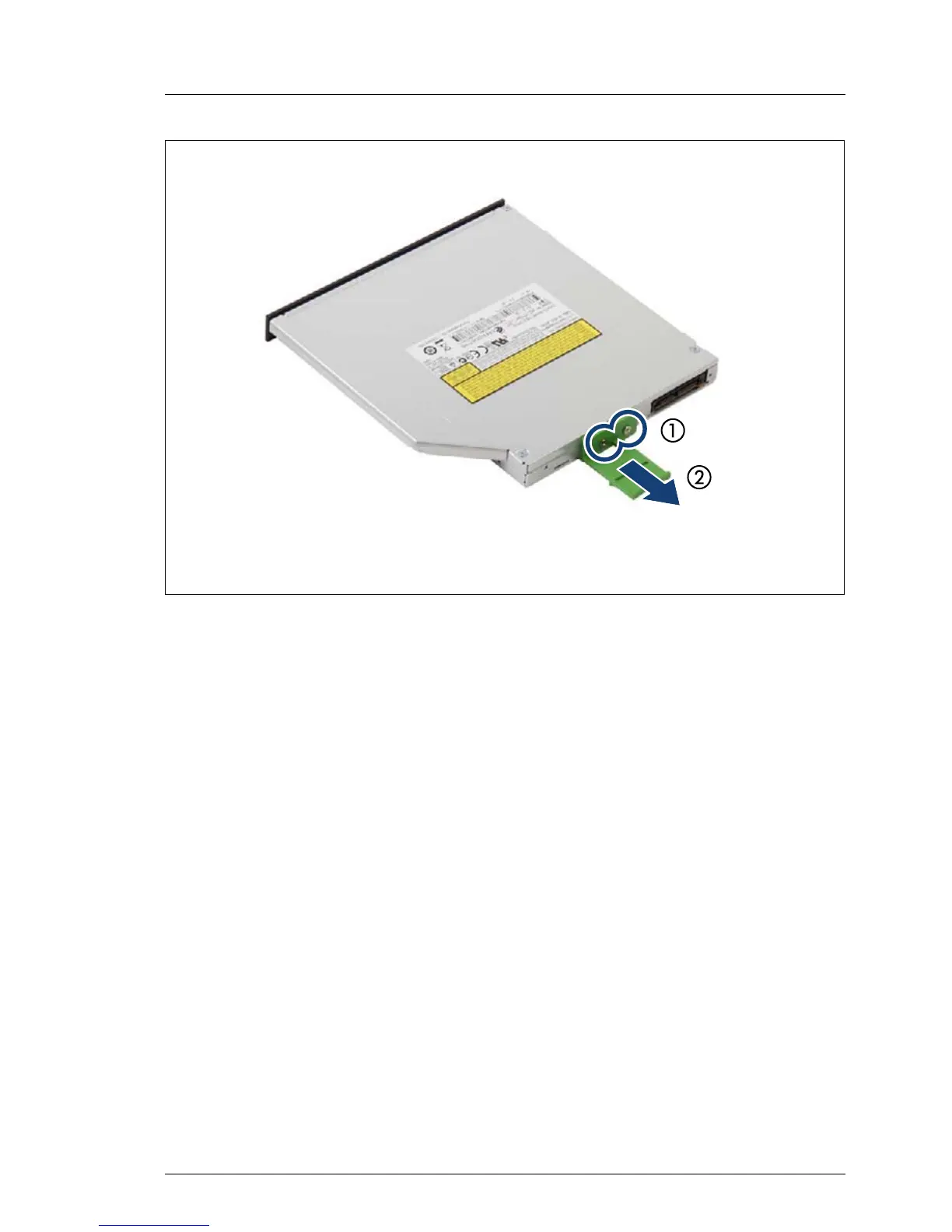

Figure 159: Removing the ODD latch
Ê Remove the two screws (1).
Ê Remove the ODD latch on the rear of the ODD (2).
Ê Fix the ODD latch in the bottom of the front panel module see figure 154 on
page 264.
