RX2520 M1 Upgrade and Maintenance Manual 285
Accessible drives

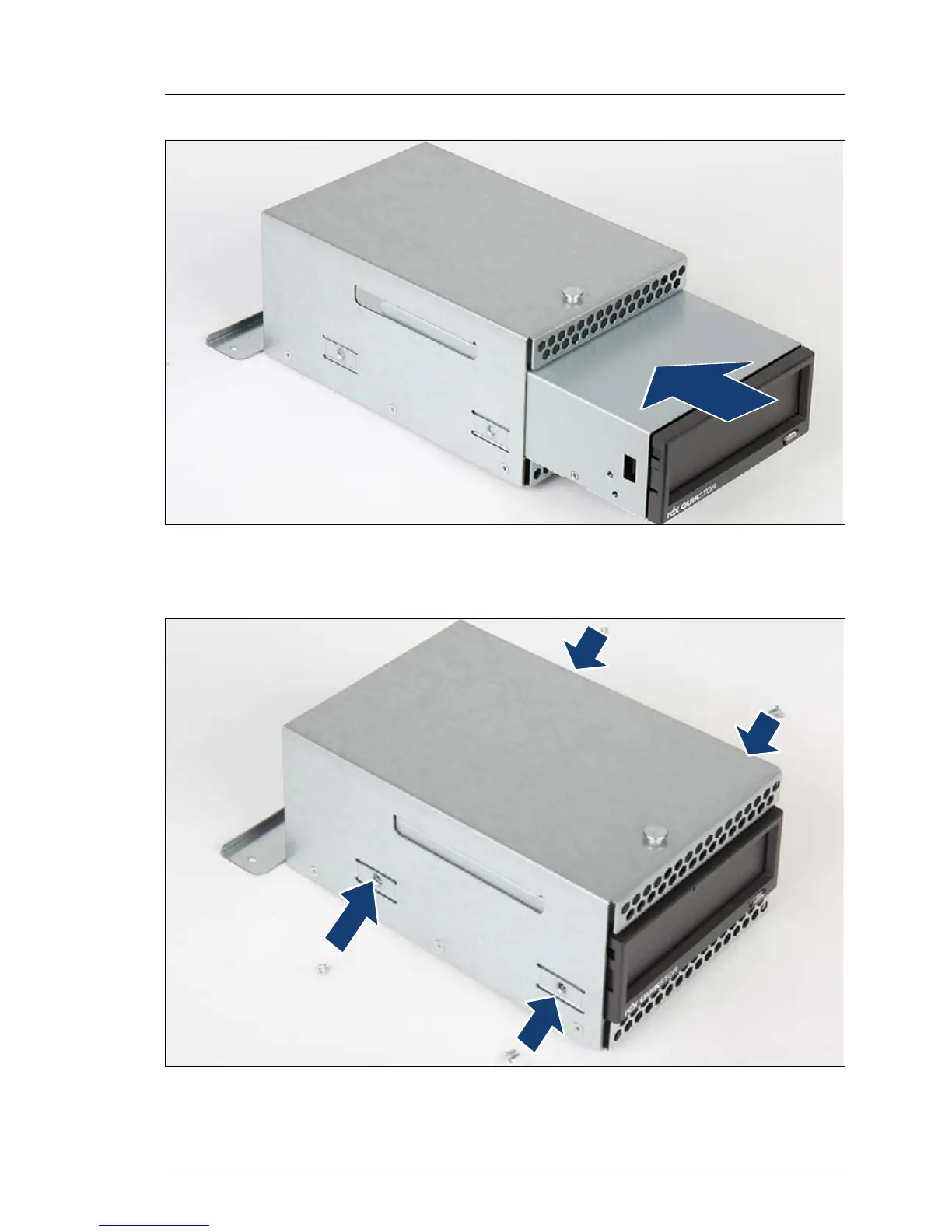

Figure 176: Inserting the RDX drive in the drive cage
Ê Insert the RDX drive into the bay and push in.
Figure 177: Fastening the RDX drive in the drive cage
Ê Fasten the RDX drive with 4 screws in the drive cage.
