290 Upgrade and Maintenance Manual RX2520 M1
Accessible drives

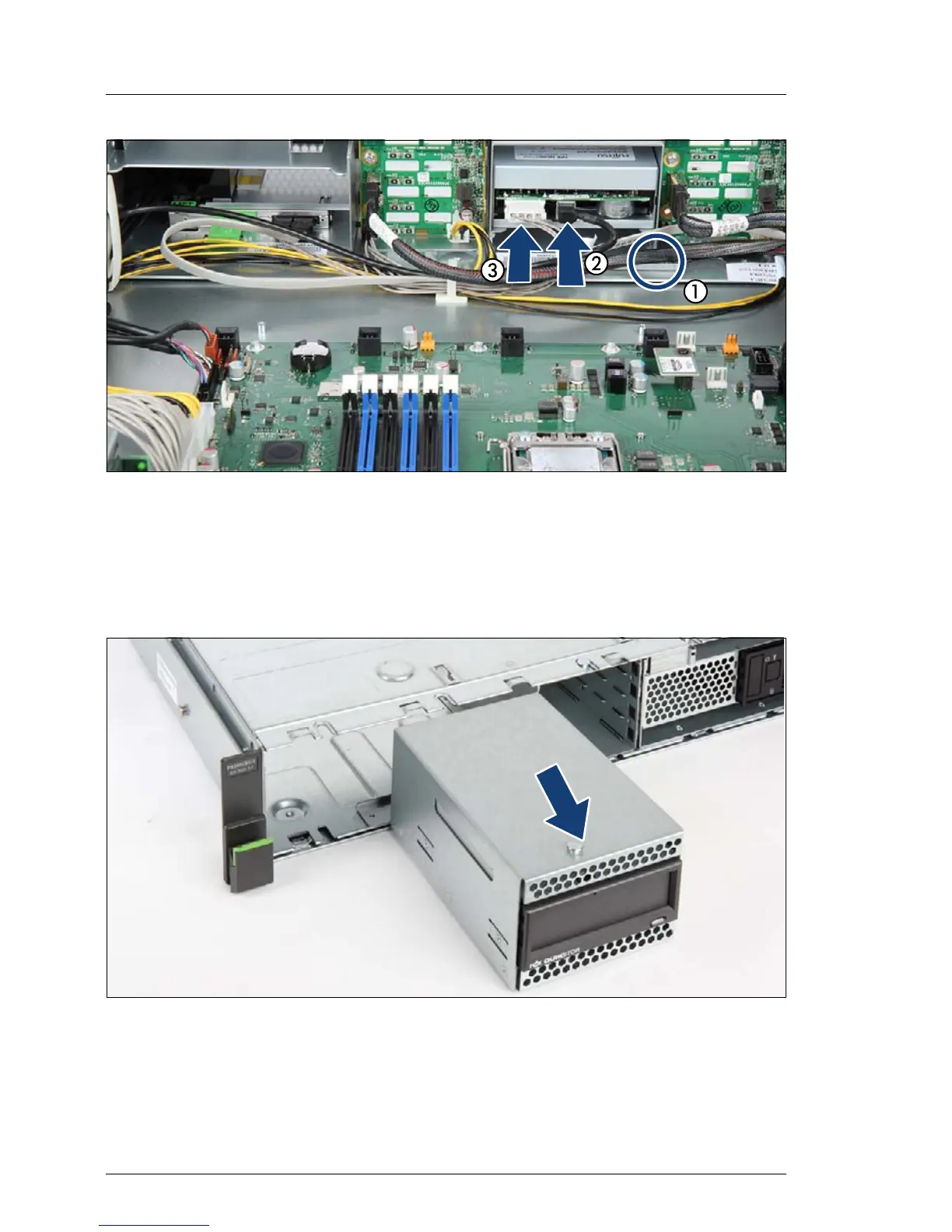

Figure 182: Removing the cables from the RDX drive
Ê Removing the screw that fasten the drive cage(1).
Ê Disconnecting the USB cable (2).
Ê Disconnecting the power cable (3).
Figure 183: Unlocking the drive cage
Ê Remove the drive cage.
