Fujitsu PRIMERGY RX2520 M1 Upgrade And Maintenance Manual

RX2520 M1 Upgrade and Maintenance Manual 31
Before you start
Screw driver /
Bit insert /
torque
Screw Usage Type
Hexagonal cross
SW5
0.6 Nm
HDD cages
to chassis,
Multibay and
Panelhousin
g
Slot bracket
to chassis,
Fan box
M3 x 4.5 mm
(silver)
C26192-Y10-C67
Hexagonal cross
SW5
0.6 Nm
System
board, Front
panel (2.5-
inch version)
M3 x 6 mm
(silver)
C26192-Y10-C68
Phillips
PH1 / (+) No. 1
0.4 Nm
3.5-inch HDD 6-32 UNC-3A
C26192-Y10-
C200
Phillips
PH0 / (+) No. 0
0.4 Nm
2.5-inch
HDD/SSDs
RDX(2.5-
inch version)
LTO drive
M3 x 3.5 mm
(silver)
C26192-Y10-
C102
TPM bit insert
Dedicated TPM
screw driver /
TPM module
fixing tool (for the
Japanese market)
0.4 Nm
TPM screw
One way
head
REM 3 x 15 mm
(black)
C26192-Y10-
C176

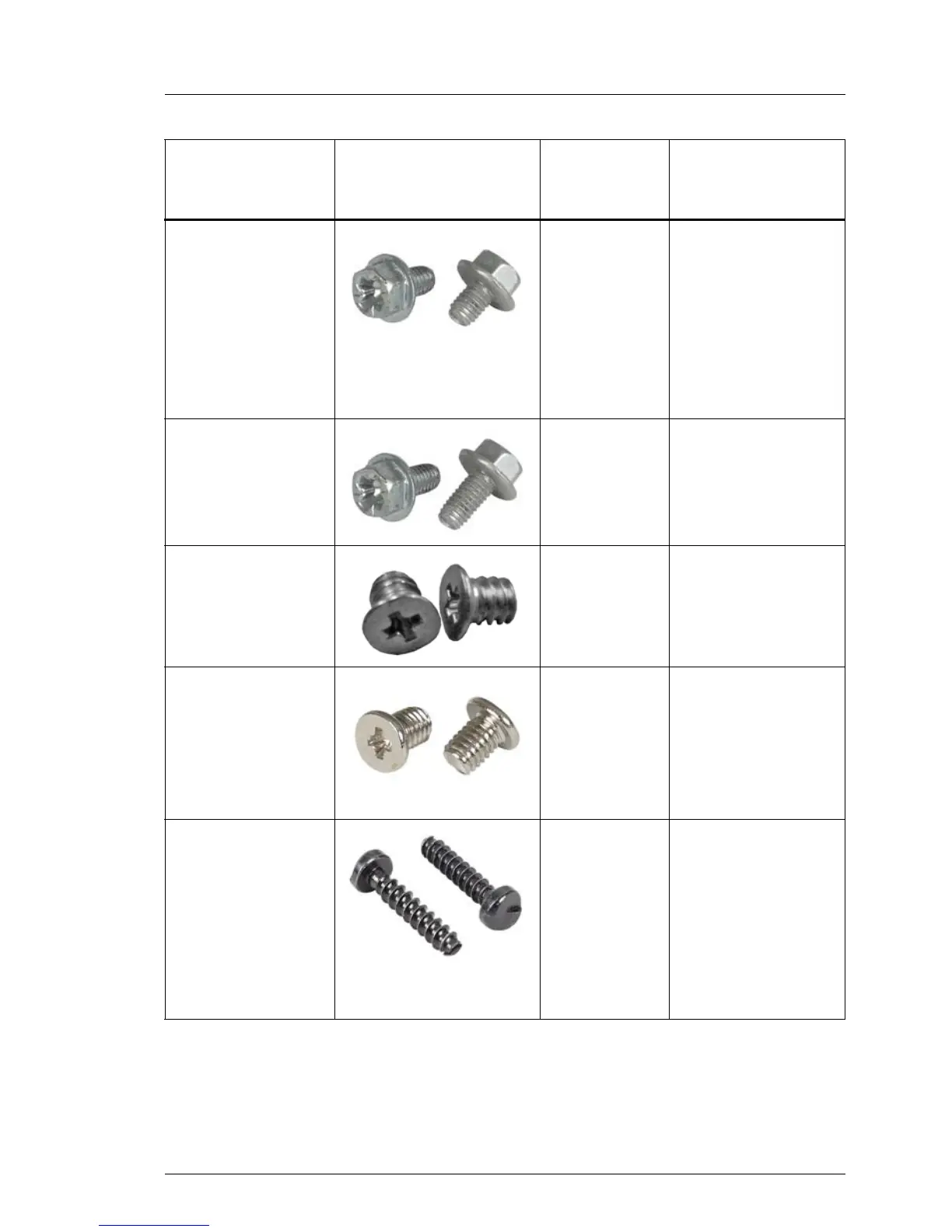

Table 2: List of required tools and used screws

Fujitsu PRIMERGY RX2520 M1 Specifications

General

Bus type	QPI
Stepping	C2
FSB Parity	No
Scalability	2S
Processor code	SR0LM
Processor cache	15 MB
Processor cores	6
Processor model	E5-2430
System bus rate	7.2 GT/s
Processor series	Intel Xeon E5-2400
Processor socket	LGA 1356 (Socket B2)
Processor threads	12
Processor codename	Sandy Bridge EN
Motherboard chipset	Intel C600
Processor frequency	2.2 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor package size	45 x 42.5 mm
Processor front side bus	- MHz
Processor boost frequency	2.7 GHz
Processor operating modes	64-bit
Supported instruction sets	AVX
Thermal Design Power (TDP)	95 W
Compatible processor series	Intel® Xeon®
Number of processors installed	1
Maximum number of SMP processors	2
Maximum number of PCI Express lanes	24
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Triple
Memory clock speeds supported by processor	800, 1066, 1333 MHz
Memory bandwidth supported by processor (max)	32 GB/s
Maximum internal memory supported by processor	375 GB
Intelligent Platform Management Interface (IPMI) support	Yes
HDD size	- \
RAID levels	0, 1
HDD interface	-
Optical drive type	DVD-RW
Supported HDD sizes	2.5, 3.5 \
Total storage capacity	0 GB
Maximum storage capacity	- TB
Number of HDDs installed	0
Supported storage drive interfaces	SAS, Serial ATA III
Internal memory	8 GB
Memory clock speed	1600 MHz
Maximum internal memory	192 GB
LAN controller	Intel I210
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	7
PCI Express slots version	3.0
Operating system installed	Unix
Compatible operating systems	Hyper-V Server R2 2012\\r Windows Server 2012 R2 Datacenter\\r Windows Server 2012 R2 Standard\\r Windows Server 2012 R2 Essentials\\r Windows Storage Server 2012 R2 Standard\\r Hyper-V Server 2012\\r Windows Server 2012 Datacenter\\r Windows Server 2012 Standard\\r Windows Storage Server 2012 Standard\\r Hyper-V Server 2008 R2\\r Windows Server 2008 R2 Datacenter\\r Windows Server 2008 R2 Enterprise\\r Windows Server 2008 R2 Standard\\r Windows Server 2008 Datacenter\\r Windows Server 2008 Enterprise\\r Windows Server 2008 Standard\\r VMware vSphere 5.5 Embedded\\r VMware vSphere 5.5\\r VMware vSphere 5.0 Embedded\\r VMware vSphere 5.0\\r SUSE Linux Enterprise Server 12\\r SUSE Linux Enterprise Server 11\\r Red Hat Enterprise Linux 6\\r Red Hat Enterprise Linux 5\\r Red Hat Enterprise Linux 5 with XEN\\r Citrix XenServer
Processor ARK ID	64616
Intel® Turbo Boost Technology	1.0
Intel Identity Protection Technology version	0.00
Chassis type	Rack (2U)
Power consumption (typical)	450 W
Power supply input frequency	47 - 63 Hz
Certification	RoHS, WEEE, CB
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Depth	770 mm
Width	482.6 mm
Height	86.9 mm
