Ê Remove the UFM spacer (2).

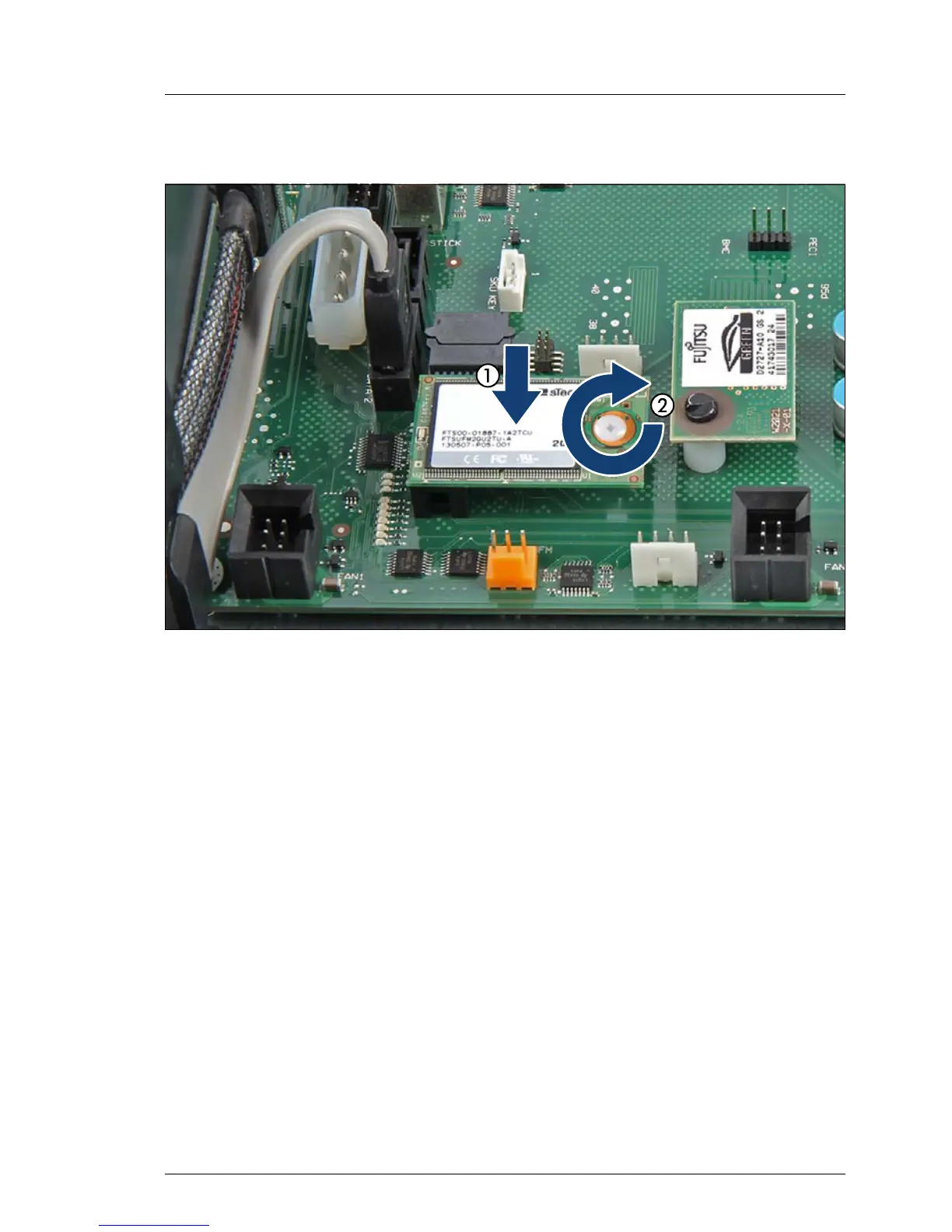

Figure 234: Installing the UFM (B)
Ê Fit the new UFM on the UFM connector and the remaining UFM spacer (1).
Ê Secure the UFM to the UFM spacer with the nylon screw (2).
Destroying the defective UFM
V CAUTION!
The UFM contains customer information (e.g. IP address, license
numbers). After replacing the UFM, hand the defective UFM over to the
customer. If the customer requests disposal of the defective UFM,
proceed as follows:
