RX2520 M1 Upgrade and Maintenance Manual 355
System board and components

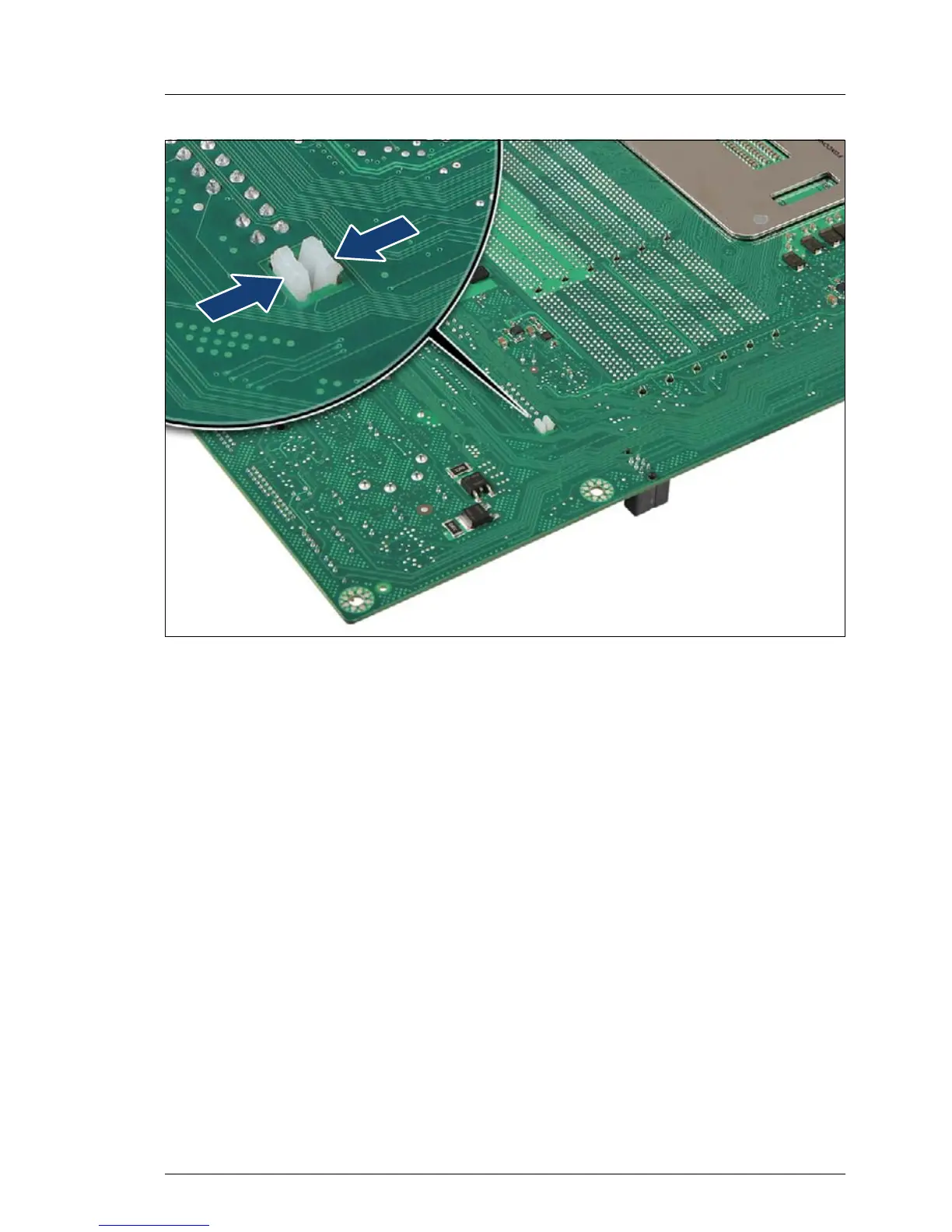

Figure 242: Removing the TPM spacer
Ê Using a pair of flat nose pliers, press together the hooks on the TPM spacer
(see close-up) and remove it from the system board.
I If the TPM is to be replaced, the TPM spacer may remain on the
system board.
