Ê "Removing the fan box" on page 168
Ê Remove the pass-through board, see section "Removing a pass-
through/expander board" on page 152.
Ê Install the expander board, see section "Installing the pass-
through/expander board" on page 156.

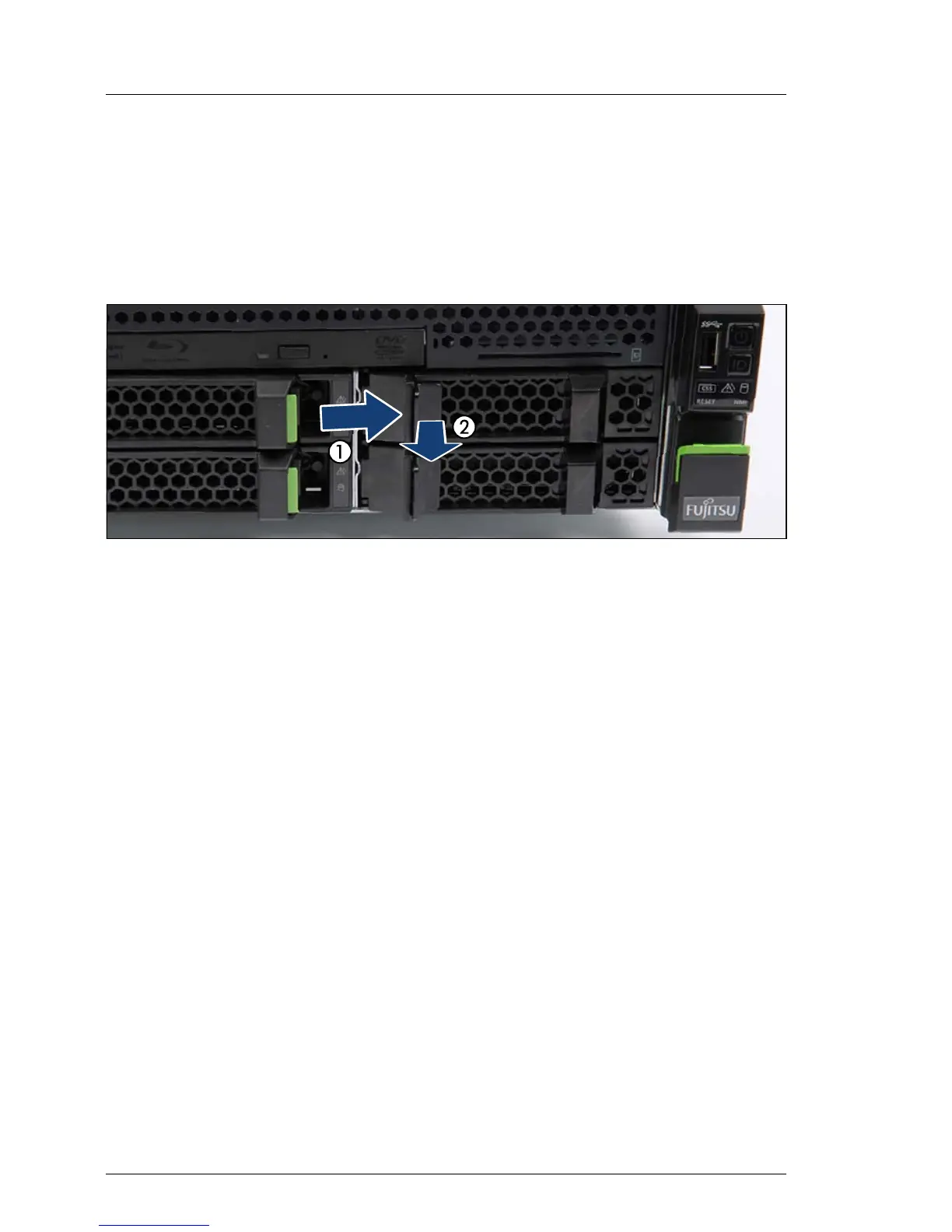

Figure 257: HDD dummy lock
Ê Press the left handle of the HDD dummy module with light pressure, to break
out the HDD dummy lock.
Ê Remove both HDD dummy locks.
Ê "Removing the ODD carrier" on page 277
Ê Install HDD modules, see section "Installing a 3.5-inch HDD module" on
page 137, or HDD dummy modules see "Installing a 3.5-inch dummy
module" on page 140.
Ê For more information about the cabling see "Configuration 9" on page 409.
Ê "Installing the fan box" on page 171
Ê "Reassembling" on page 59
Ê Connect all external cables.
Ê "Connecting the server to the power source" on page 64
Ê Update your server’s chassis information on the Chassis ID EPROM
integrated into the front panel board. For further information on how to obtain
and use the ChassisId_Prom Tool, refer to section "Using the Chassis ID
Prom Tool" on page 97.
Ê "Enabling BitLocker functionality" on page 93
