CHAPTER 1: GETTING STARTED 1.1 IMPORTANT PROCEDURES
GEK-106310-AF F650 DIGITAL BAY CONTROLLER 1-7
1.1.3 Safety instructions
The F650 ground screw shown in Figure 1-3: Location of grounding screw must be correctly grounded.

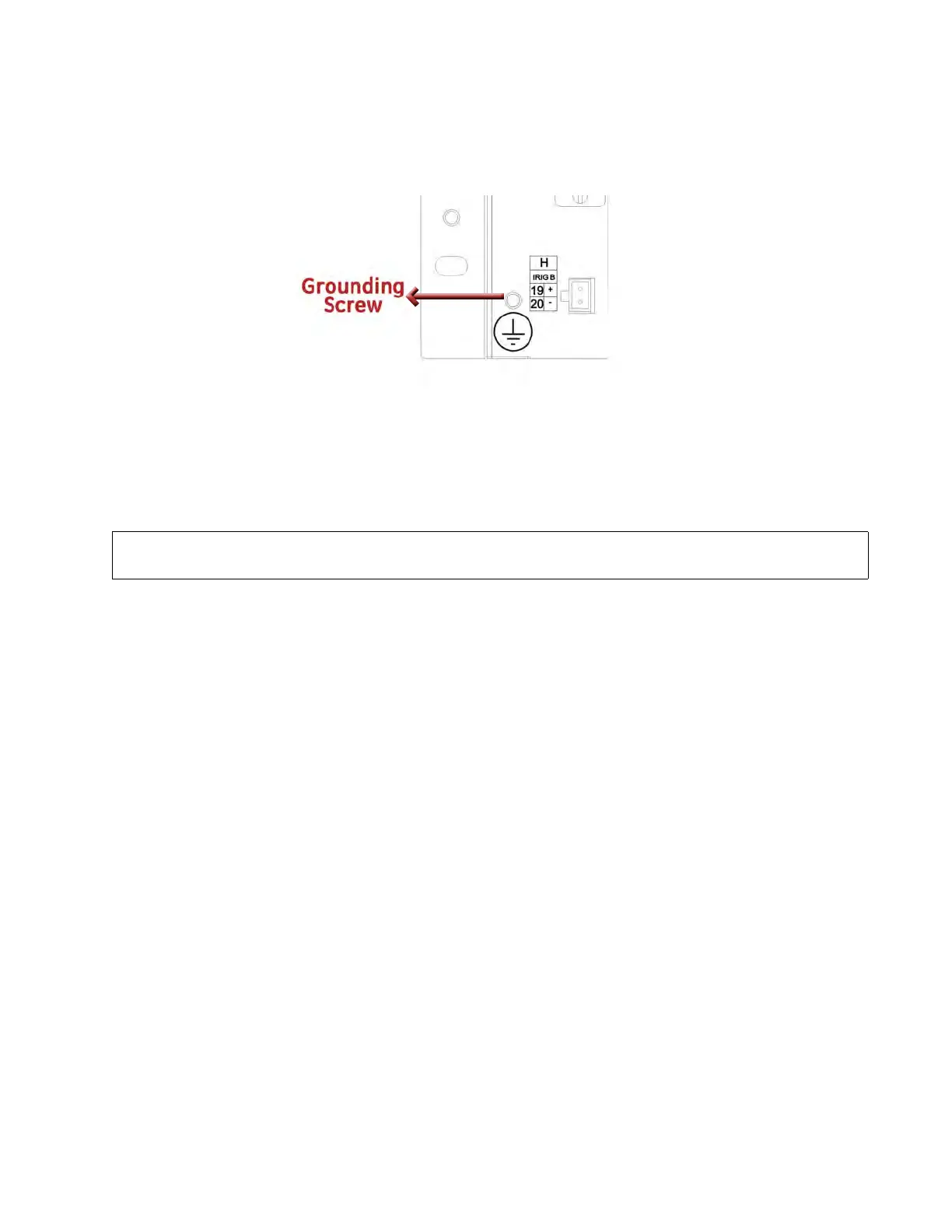

Figure 1-3: Location of grounding screw
Before communicating with the F650 through the front USB port, ensure that the computer's power supply is grounded.
When using a laptop, it is recommended that the power supply be disconnected. In many cases the laptop may not be
correctly grounded either due to the power supply or to the connector cables used.
GE Multilin will not be responsible for any damage to the relay or connected equipment when this basic safety rule
is not followed.
