7-210 F650 DIGITAL BAY CONTROLLER GEK-106310-AF
7.3 IEC 61850 CONFIGURATOR CHAPTER 7: IEC 61850 PROTOCOL
7.3 IEC 61850 configurator
7.3.1 Overview
The IEC 61850 Configurator tool can be used with relays firmware version 3.60 and further ones.
The “IEC 61850 Configurator” tool is located in the top level menu in EnerVista 650 Setup, allowing:
• Browse and edit F650 relay's ICD files
• Configure IEC 61850 reports
• Configure GOOSE messaging

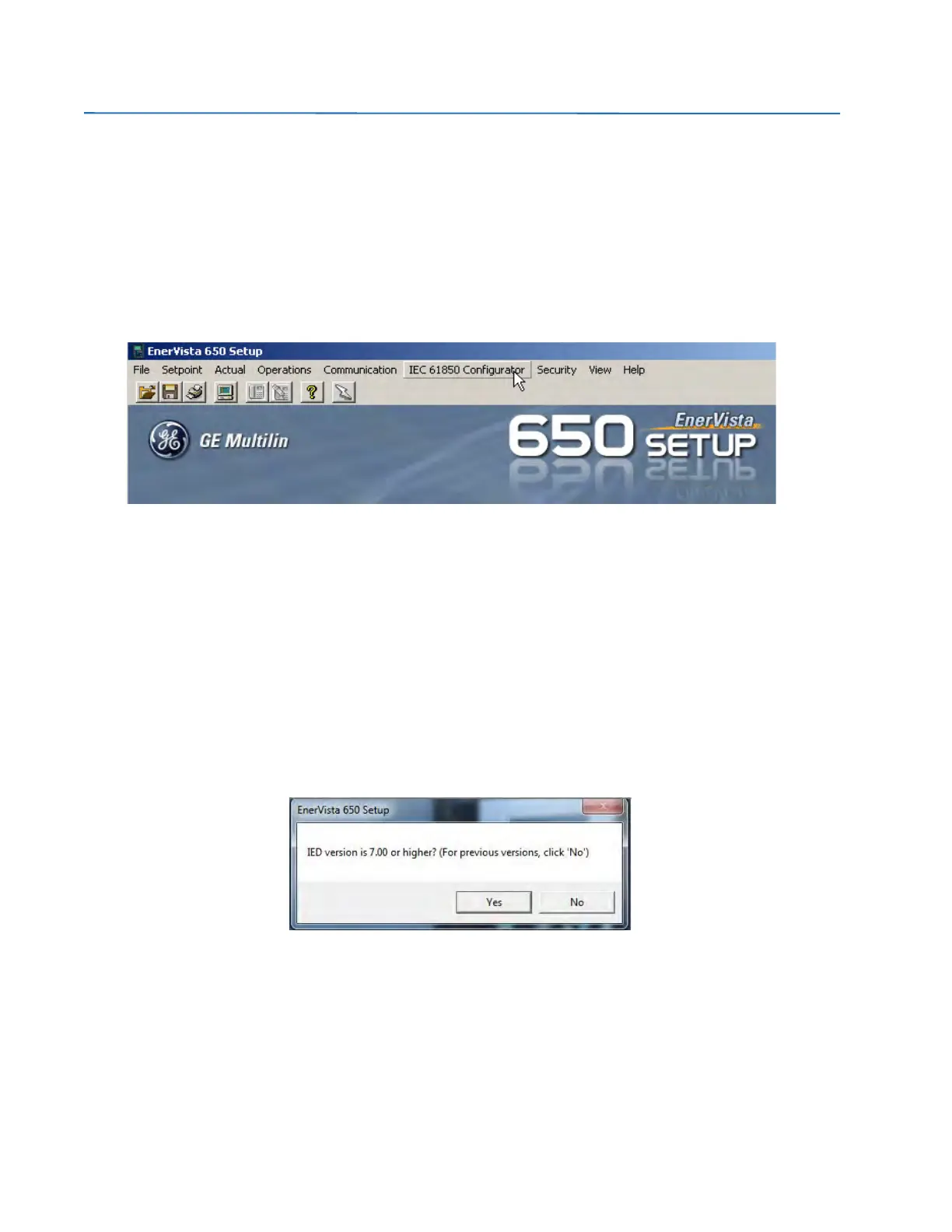

Figure 7-5: IEC61850 configurator menu location
Important Note:
For firmware versions below 3.60 basic IEC 61850 configuration is located in Setpoint > 61850 Configuration (Domain
name parameters, Ethernet parameters, MMXU parameters). With this tool some 61850 parameters can be configured in
the F650.icd file, and then the .icd file can be uploaded to the relay. For more information see chapter 5.11 IEC 61850
CONFIGURATION
Two different working modes can be distinguish in the IEC 61850 Configurator; Offline and Online mode
• "Offline Mode: When user is not communicating with a particular device, IEC 61850 Configurator tool can be used in
offline mode. When IEC 61850 Configurator option is selected, a pop-up window allows selection of the IED version to
be configured.
• "Online Mode: When communicating with
an F650 using the Enervista 650 Setup software, the IEC61850 Configurator
tool allows access to the CID/IEC of the connected device, or to send a previously configured file.
