CHAPTER 3: HARDWARE 3.4 WIRING
GEK-106310-AF F650 DIGITAL BAY CONTROLLER 3-11
3.4.3 Cable/fiber Ethernet board
The Ethernet board for versions prior to 7.00 is an independent module located in the bottom at the rear part of the relay.
In models C and D (options for versions prior to 7.00), the 10/100BaseTx port is selected by an internal switch. This switch
must be configured as shown in the figure 3-8 in order to select between fiber or cable.

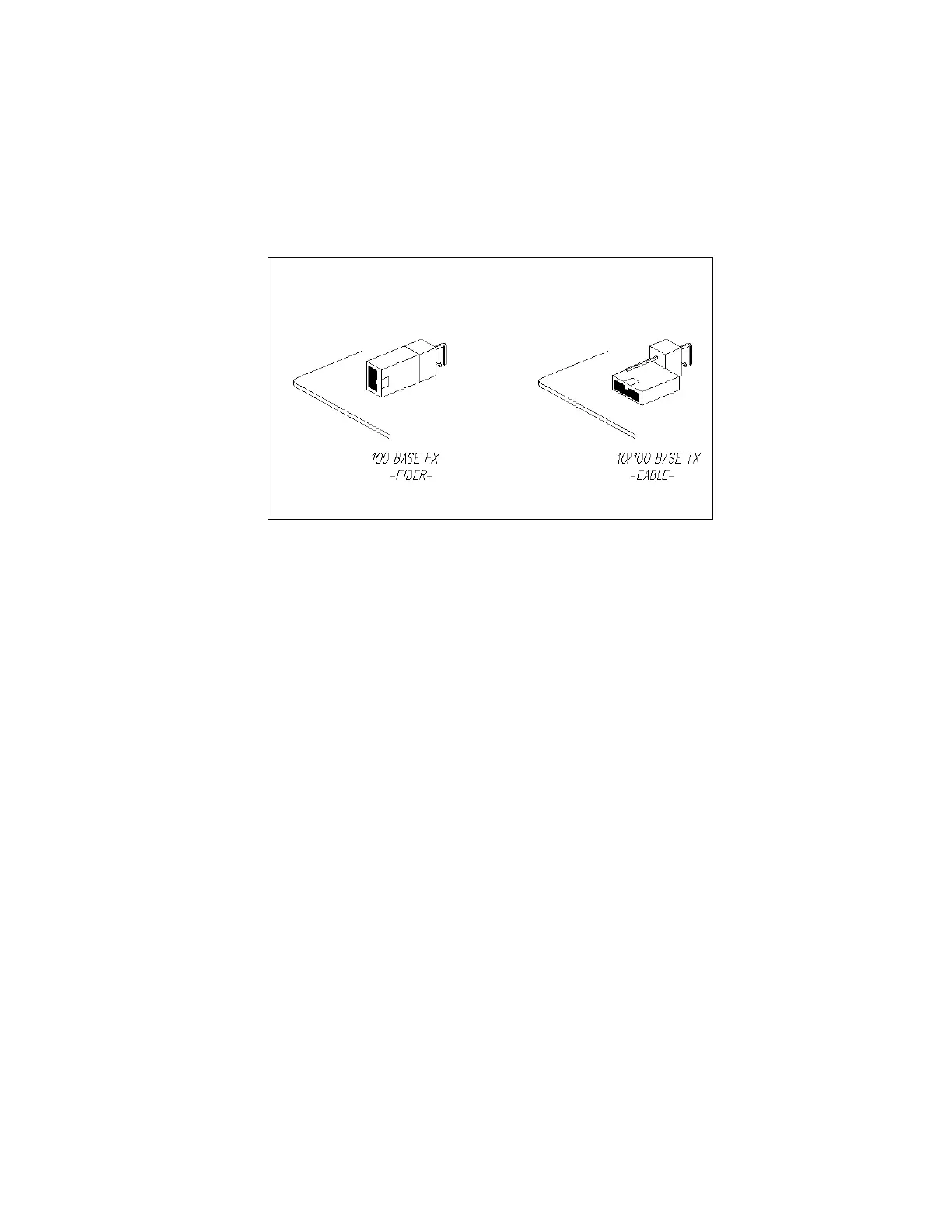

Figure 3-8: Fiber/cable selection
