5.11 IEC 61850 configuration
The 61850 Configuration option is only available if the F650 supports this protocol (6 in the order code for protocol
selection) with firmware versions 3.44 or lower. For firmware versions 3.60 or higher ones, go to section 7.3 IEC 61850
configurator.
This menu is located in Setpoint > 61850 Configuration
The user can configure some 61850 parameters in the F650.icd file, and then send this file to the relay. The parameters
that can be configured are:
Domain name parameters:
·IED Name
· LD Name from the Domain Name
Ethernet parameters:
· IP Address
· Subnet Mask
· Gateway

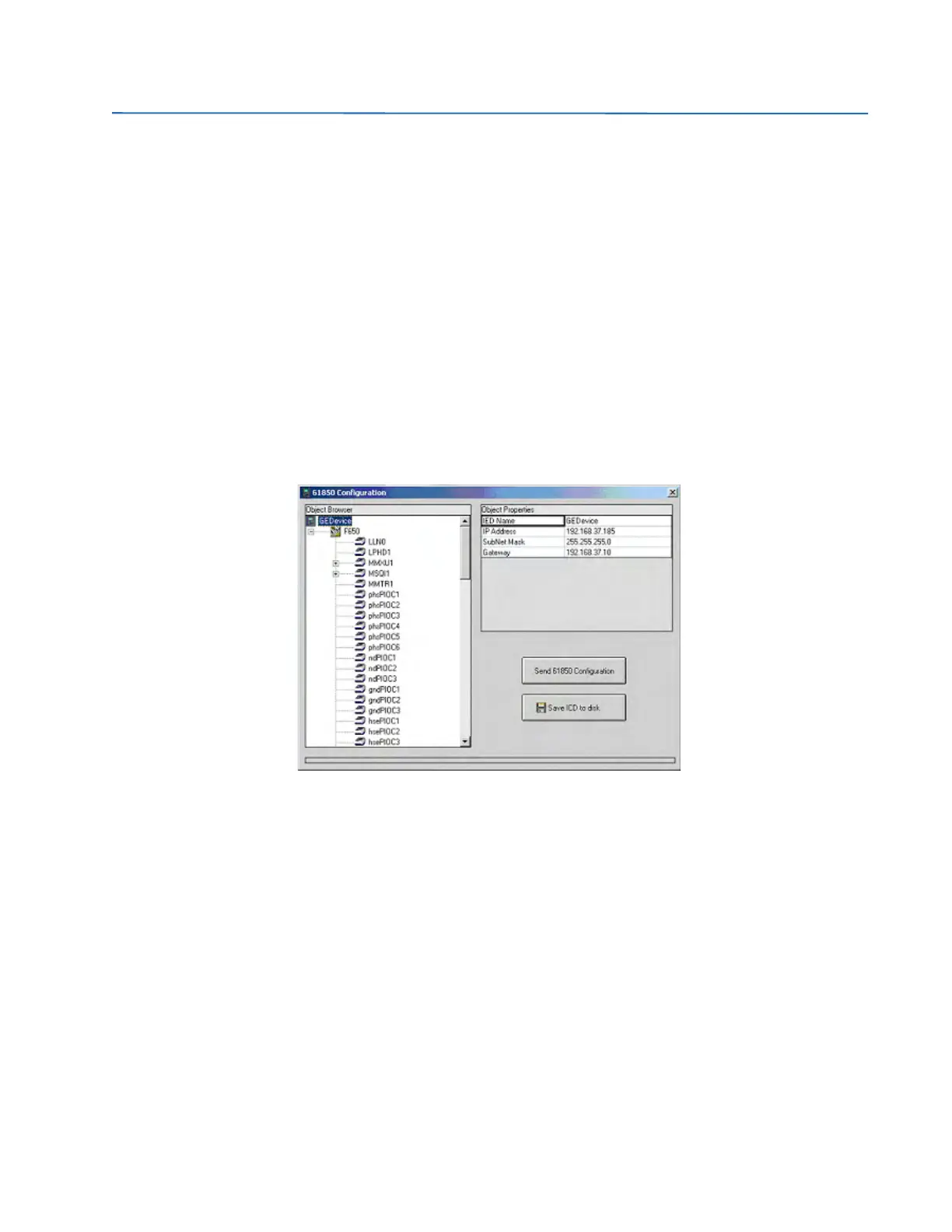

Figure 5-60: IED name and Ethernet parameter configuration
