CHAPTER 4: INTERFACES, SETTINGS & ACTUAL VALUES 4.1 ENERVISTA 650 SETUP SOFTWARE
GEK-106310-AF F650 DIGITAL BAY CONTROLLER 4-15

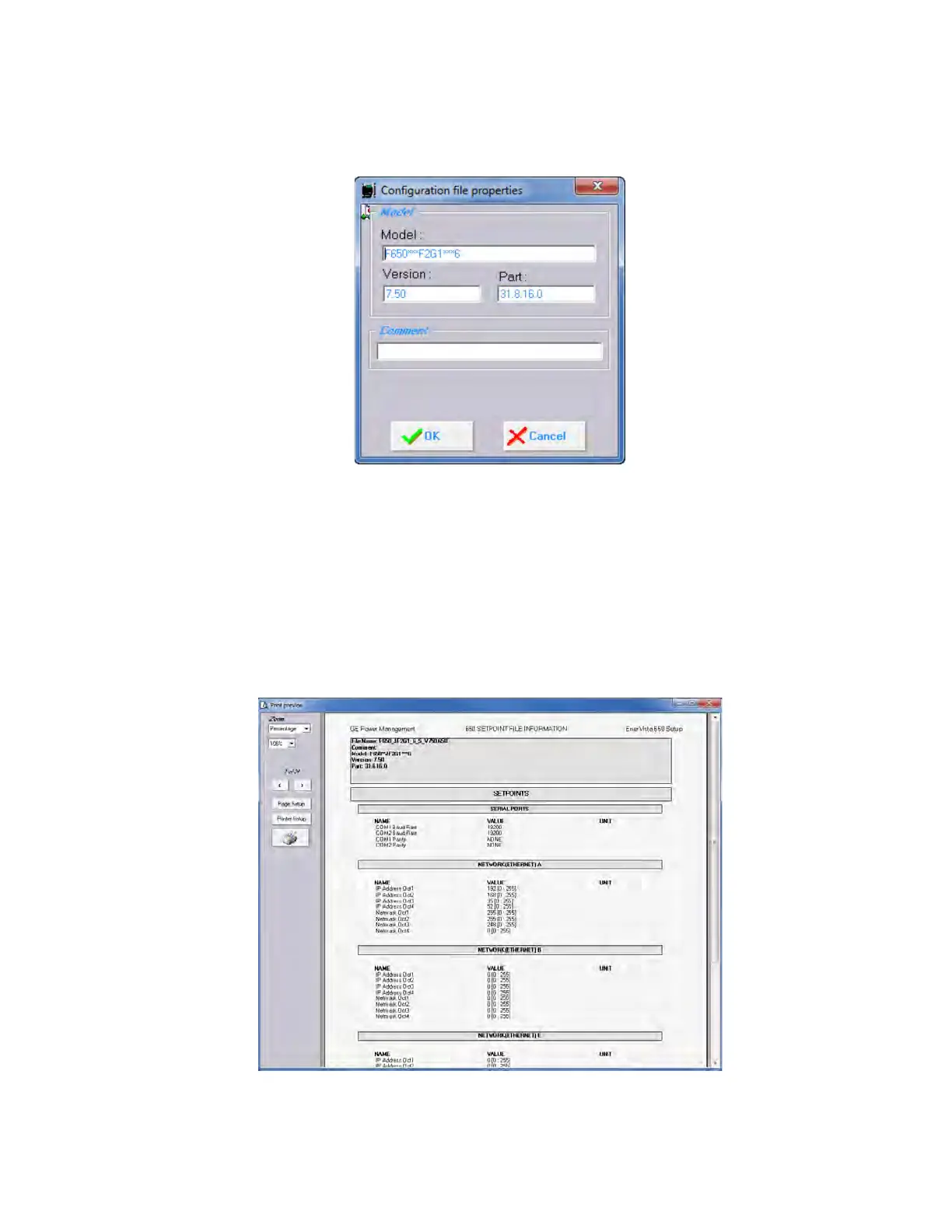

4.1.6.3 Properties
When this option is selected, the program displays the relay model information, firmware version, etc. of the file being
edited, as shown:
Figure 4-7: File properties menu
4.1.6.4 Print options
The printing options are active only in offline mode with a file open, and not in online mode, connected with the relay.
Print setup
Option to configure the printer options and settings.
Print preview
Option to preview the whole settings and configuration file (*.650) in paper format to be printed as shown:
Figure 4-8: Print preview of settings file
