CHAPTER 5: SETPOINTS 5.6 INPUTS/OUTPUTS
GEK-106310-AF F650 DIGITAL BAY CONTROLLER 5-153
Table 5-91: Virtual input status
Text assignment for virtual input is made at Setpoint > Relay Configuration > Virtual Inputs. It should be taken into
account that the text assigned for virtual inputs in the relay configuration screen are only for file management, they are
not sent to the relay.
5.6.8 Virtual outputs
There are 512 virtual outputs that may be assigned via Logic configuration. If not assigned, the output is forced to OFF
(Logic 0). An ID may be assigned to each virtual output. Virtual outputs are resolved in each pass through the evaluation of
the logic equations. For more detailed information see chapters 5.9 Relay configuration and 5.10 Logic configuration (PLC
editor) in this manual.
5.6.9 Virtual outputs latched
There are 16 virtual outputs latched that may be assigned via Logic configuration. If not assigned, the output is forced to
OFF (Logic 0). Virtual outputs are resolved in each pass through the evaluation of the logic equations. These latched virtual
outputs can only be assigned as an S/R output, they only are linked to a PLC's S/R output and their values remain after
switching the unit off and then on.

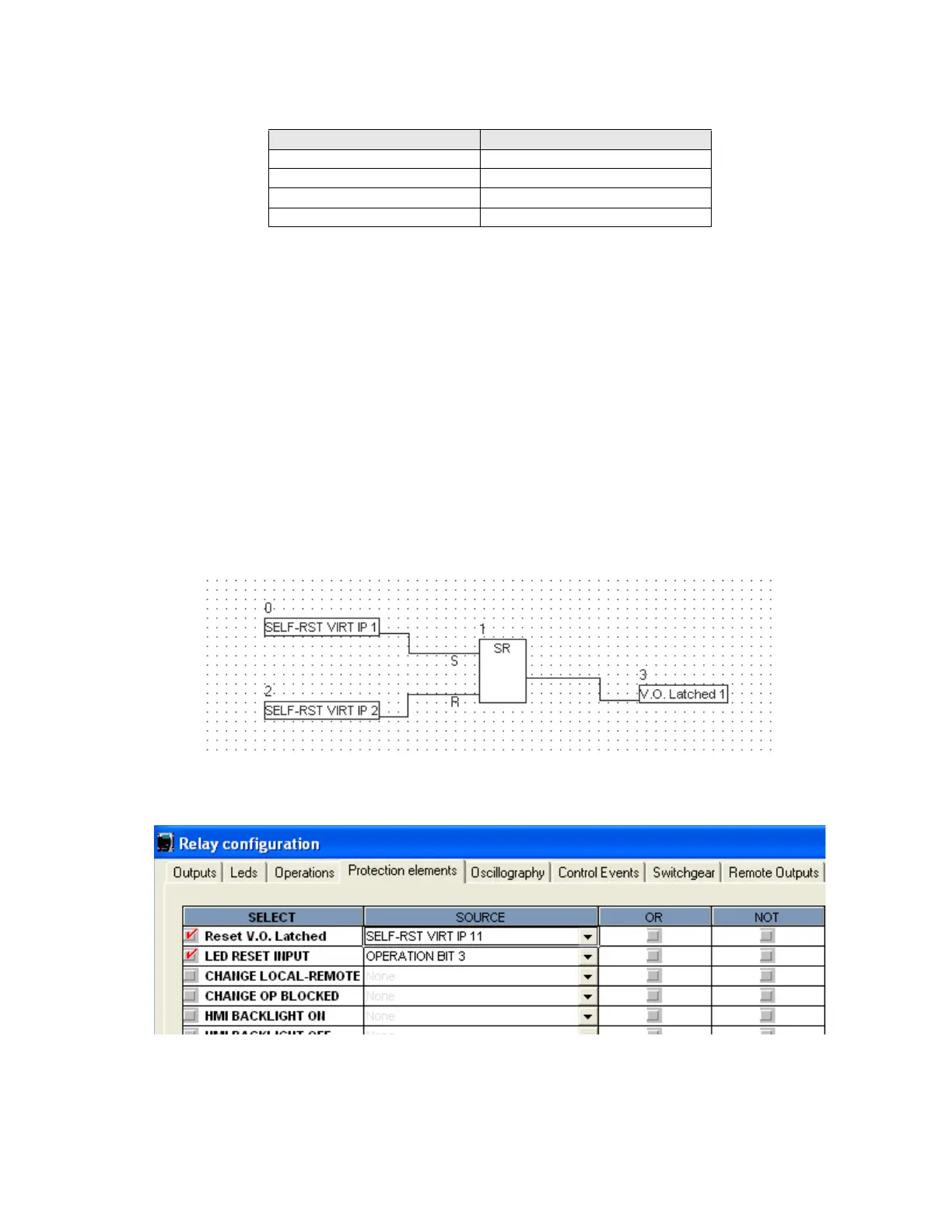

These virtual output latched may be reset by a PLC setting as it is shown in the following figure
VIRTUAL INPUTS LATCHED VIRTUAL INPUTS SELF-RESET
LATCHED VIRT IP 1 SELF-RST VIRT IP 1
LATCHED VIRT IP 2 SELF-RST VIRT IP 2
… …
LATCHED VIRT IP 32 SELF-RST VIRT IP 32
