6-54 F650 DIGITAL BAY CONTROLLER GEK-106310-AF
6.5 RECORDS CHAPTER 6: ACTUAL VALUES

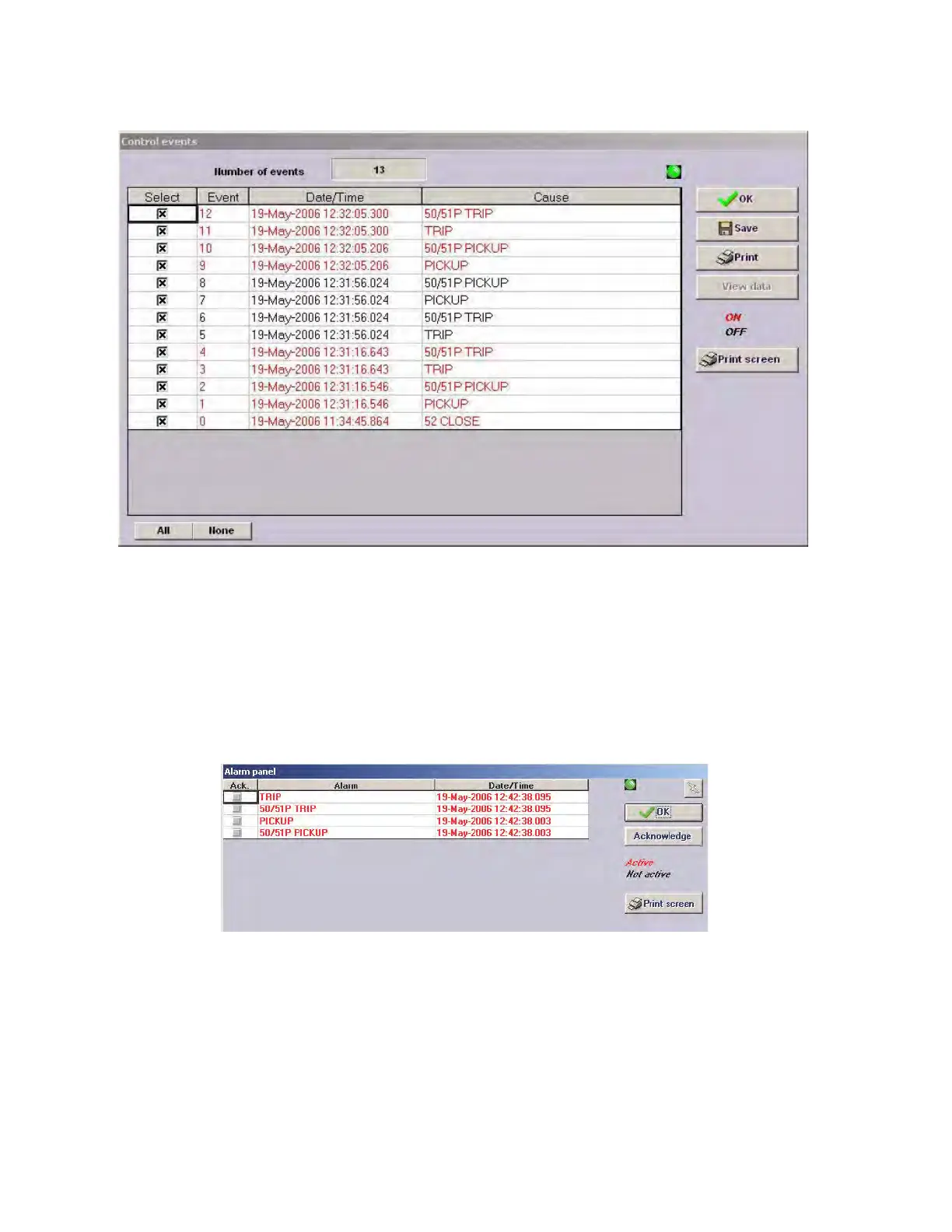

Figure 6-1: Control events
6.5.1.4 Alarm panel
The alarm panel can be accessed at Actual > Records > Event Recorder > Alarm Panel.
The following screen provides information about the issued alarms. The screen shows information about their status:
active not acknowledged, active acknowledged and not active. The user can either acknowledge all alarms at the same
time, or do it partially by selecting the alarms to be acknowledged.
Figure 6-1: Alarm panel
