3.3 Mechanical description
The model number and electrical characteristics of the unit are indicated on the label located on the right side of the relay
case.
The metallic case of the unit is highly resistant to corrosion. It is made of stainless steel (AISI 430), coated with an epoxy
layer. The rest of the metallic pieces are covered with a high quality resistive coating that has successfully passed at least
96 hours in the salt spray chamber (S/N ASTM B-117).
The front of the relay is made of a thermoplastic, flame retardant (V0, UL94), highly resistive material, which guarantees
the unit’s immunity to all kinds of EMI/RFI/ESD interferences. There is also an IP52 (IEC 529) protection rating against dust
and water through the front and with the relay mounted in the panel.
3.3.1 Mounting
The unit is designed for semi-flush mounting. The relay is secured to the panel with the 4 M6 screws provided with the unit.
The front keypad, display, and communications port are easily access on the front of the unit. The wiring is at the rear of
the unit. Drilling dimensions are shown on Figure 3-3: Cutout and drilling dimensions

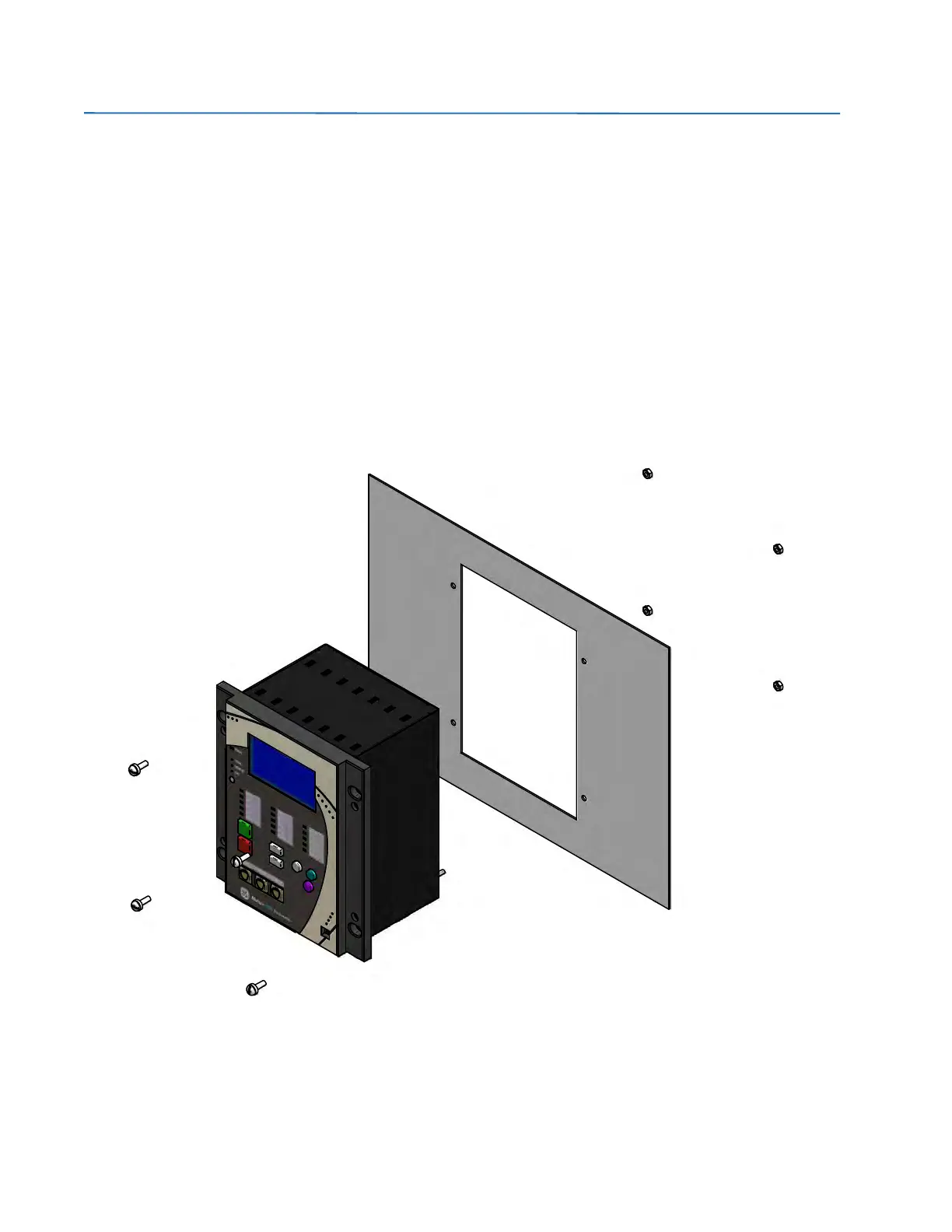

Figure 3-2: Panel mount
The relay width allows the mounting of two units on a standard 19’’ panel, 8 units high.
