5-174 F650 DIGITAL BAY CONTROLLER GEK-106310-AF

5.9 RELAY CONFIGURATION CHAPTER 5: SETPOINTS

5.9.10 Device display selection

5.9.10.1 Type of graphical display

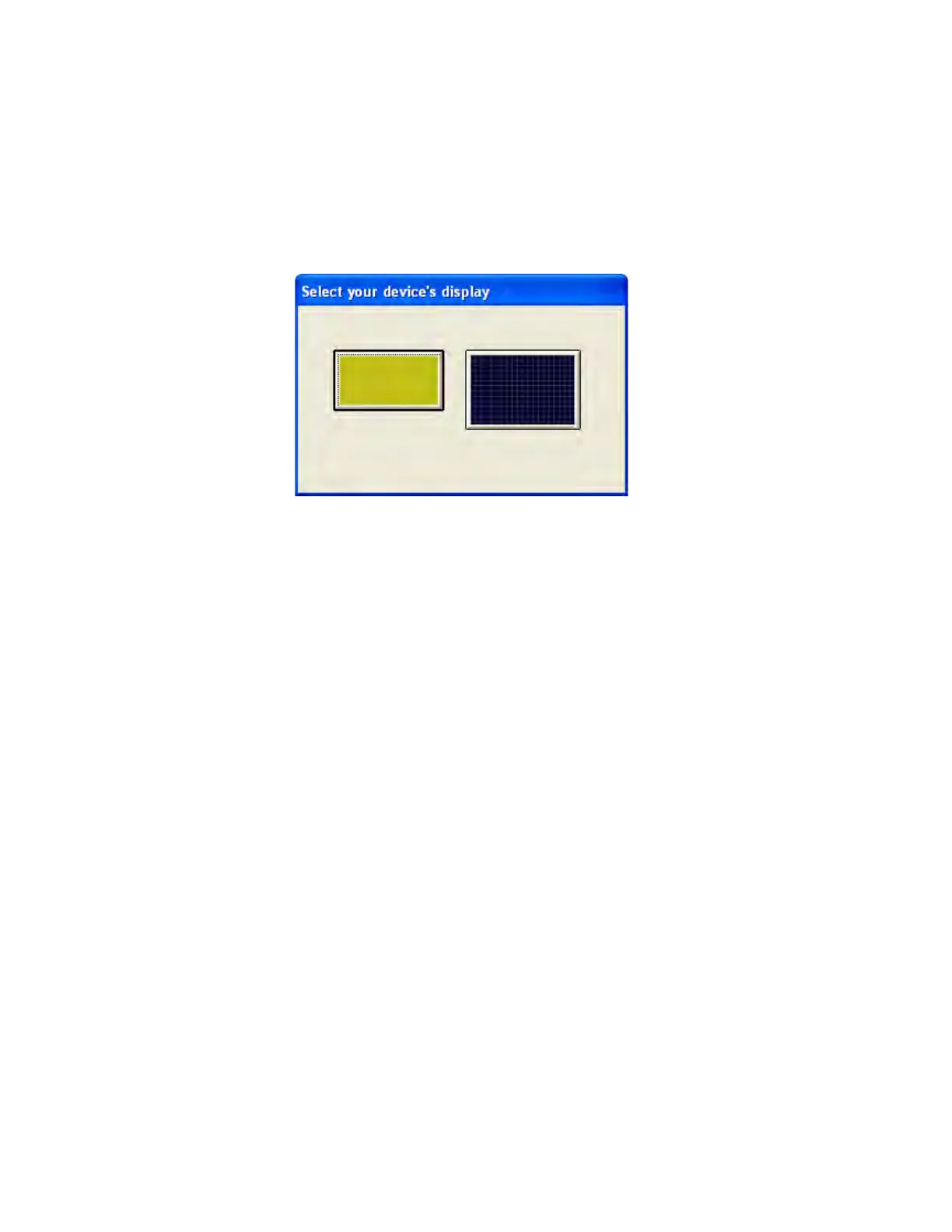

On offline mode, when creating a new setting file (*.650), when entering on SETPOINT > RELAY CONFIGURATION > HMI, it is

possible to choose the display type that is wanted to configure from two types of graphical displays depending on the

order code. Green one for standard models and the black one for “N” model IEC selection.
