7.3 IEC 61850 CONFIGURATOR CHAPTER 7: IEC 61850 PROTOCOL

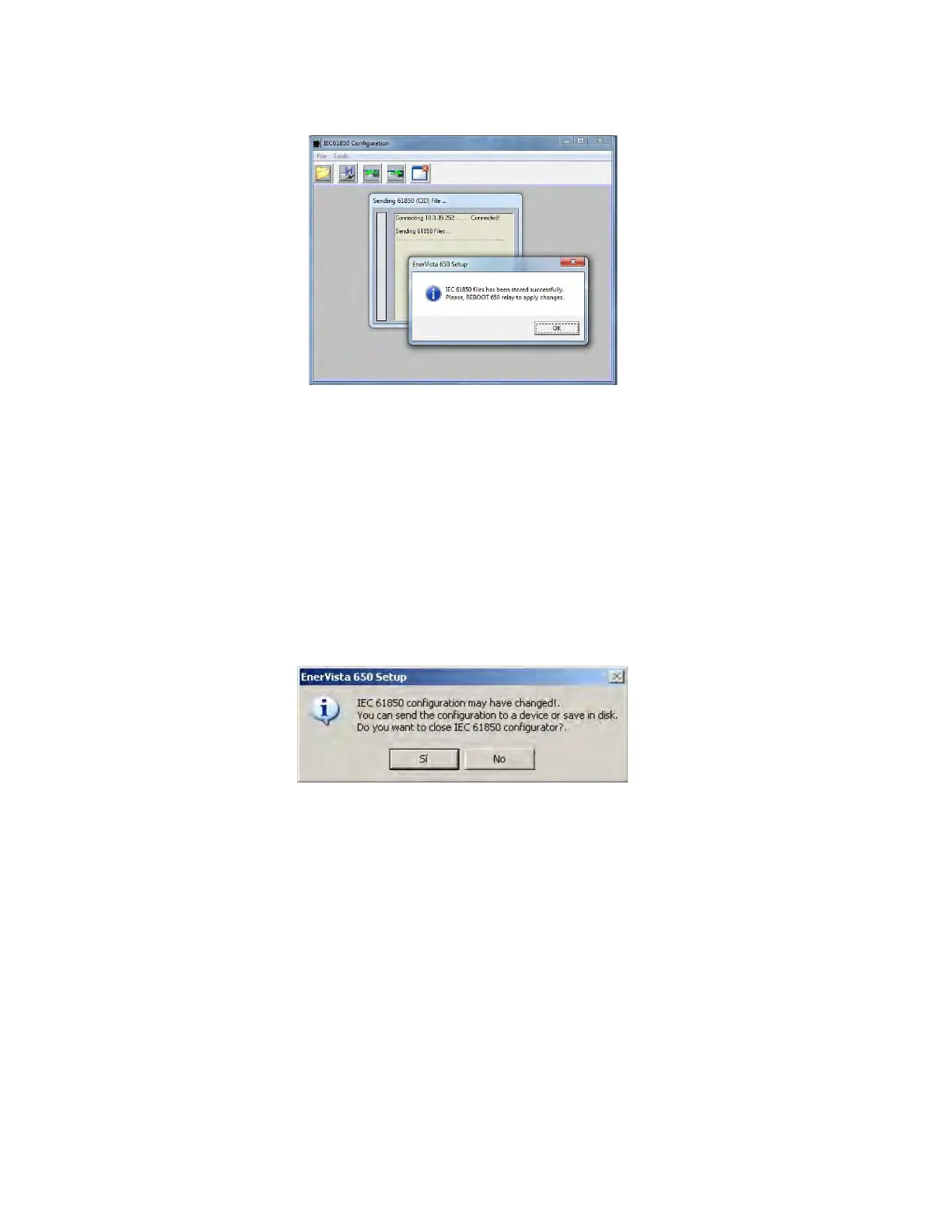

Figure 7-10: Send file successfully performed
These pop-up menus also appear if the user selects the "Send IEC 61850 file to device" option after retrieving the files using
the "Receive IEC 61850 file from device".
7.3.2.6 Export *. ICD
The F650.icd file can be exported from the F650.iec files using the "Export *. Icd" option provided in the IEC 61850
configurator tool. This icd file can be used for goose configuration in other devices.This options is available only for
firmware versions below to 7.XX
7.3.2.7 Exit
When Exit is selected, the program prompts to save the configuration to disk or send it to the relay.
Figure 7-11: EXIT IEC 61850 CONFIGURATOR?
