7-250 F650 DIGITAL BAY CONTROLLER GEK-106310-AF
7.3 IEC 61850 CONFIGURATOR CHAPTER 7: IEC 61850 PROTOCOL
7.3.2.12 IEC 61850 configurator: CID file conversion
In Enervista 650 Setup version 7.20 or above, a CID file converter menu option is available in the IEC 61850 Configurator
menu: Tools > ConvertCIDFiles. The CID file converter enables CID file conversion from firmware version 7.00 and above,
allowing for conversion of CID files in parallel with relay firmware updates. The main parts of the CID file that are
maintained are the configurable fields at the Communication and IED levels, the public and private Settings, Datasets,
Report Control Blocks, GOOSE Transmission Control Blocks and GOOSE Reception.
To convert a CID file, follow these steps:
1. In the IEC61850 Configurator, select Tool > ConvertCIDFiles.

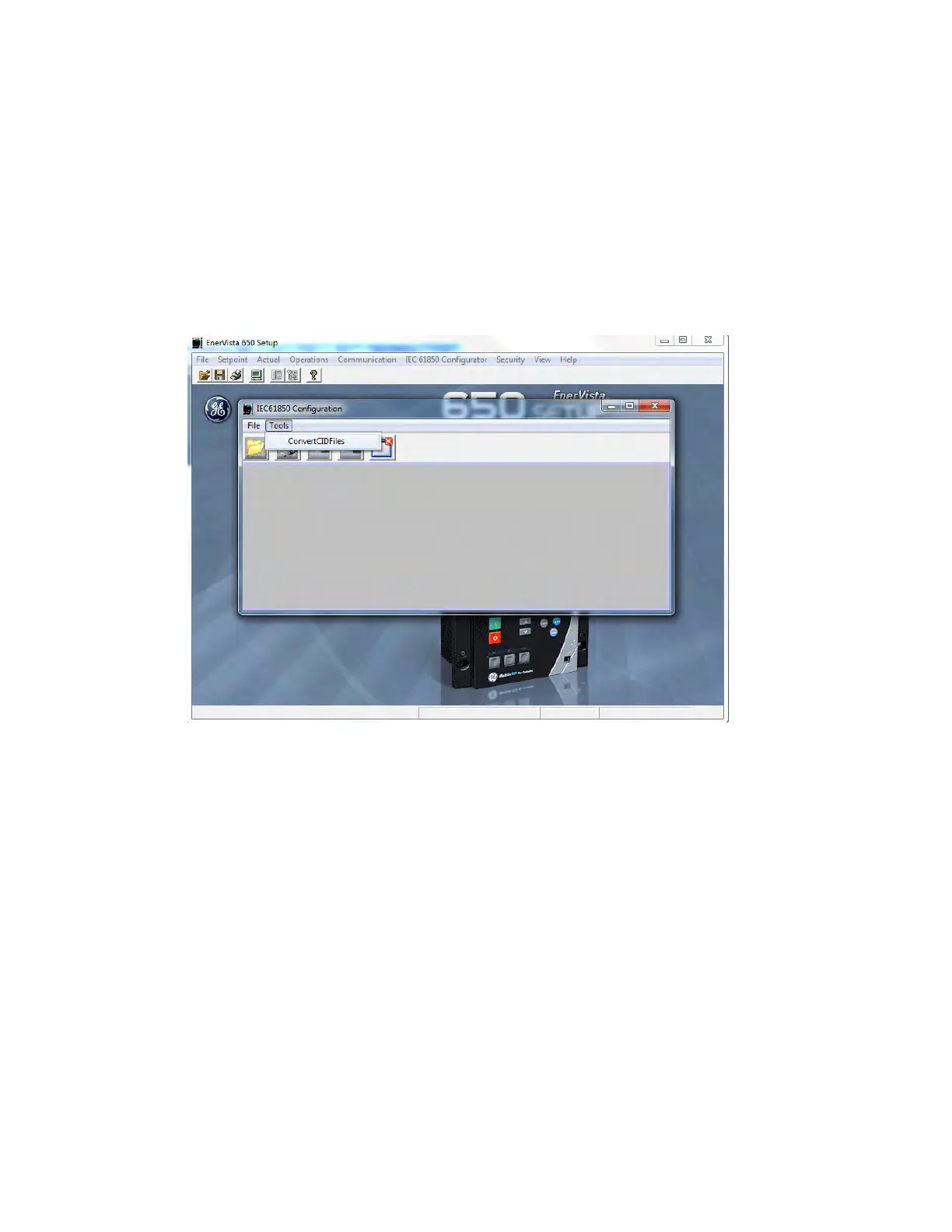

Figure 7-40: ConvertCIDFiles option
