CHAPTER 7: IEC 61850 PROTOCOL 7.3 IEC 61850 CONFIGURATOR
GEK-106310-AF F650 DIGITAL BAY CONTROLLER 7-249
In the GOOSE reception configuration tab, the user performs the following options:
•Add IED.
• Import IED's from SCD.
• Remove IED.

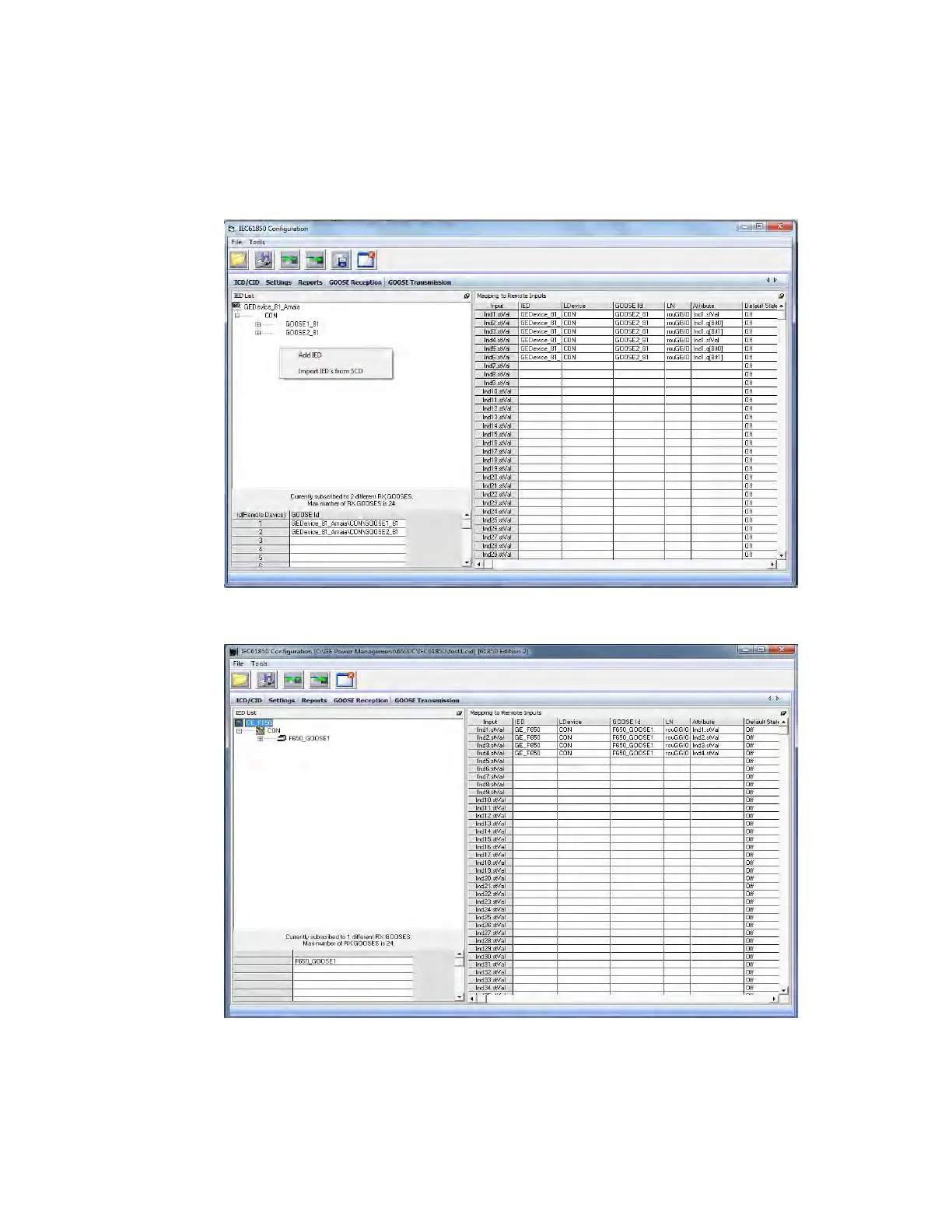

Figure 7-38: Example of GOOSE reception options (1) (V7.XX)
Figure 7-39: Example of GOOSE reception options (2) (V7.XX)
