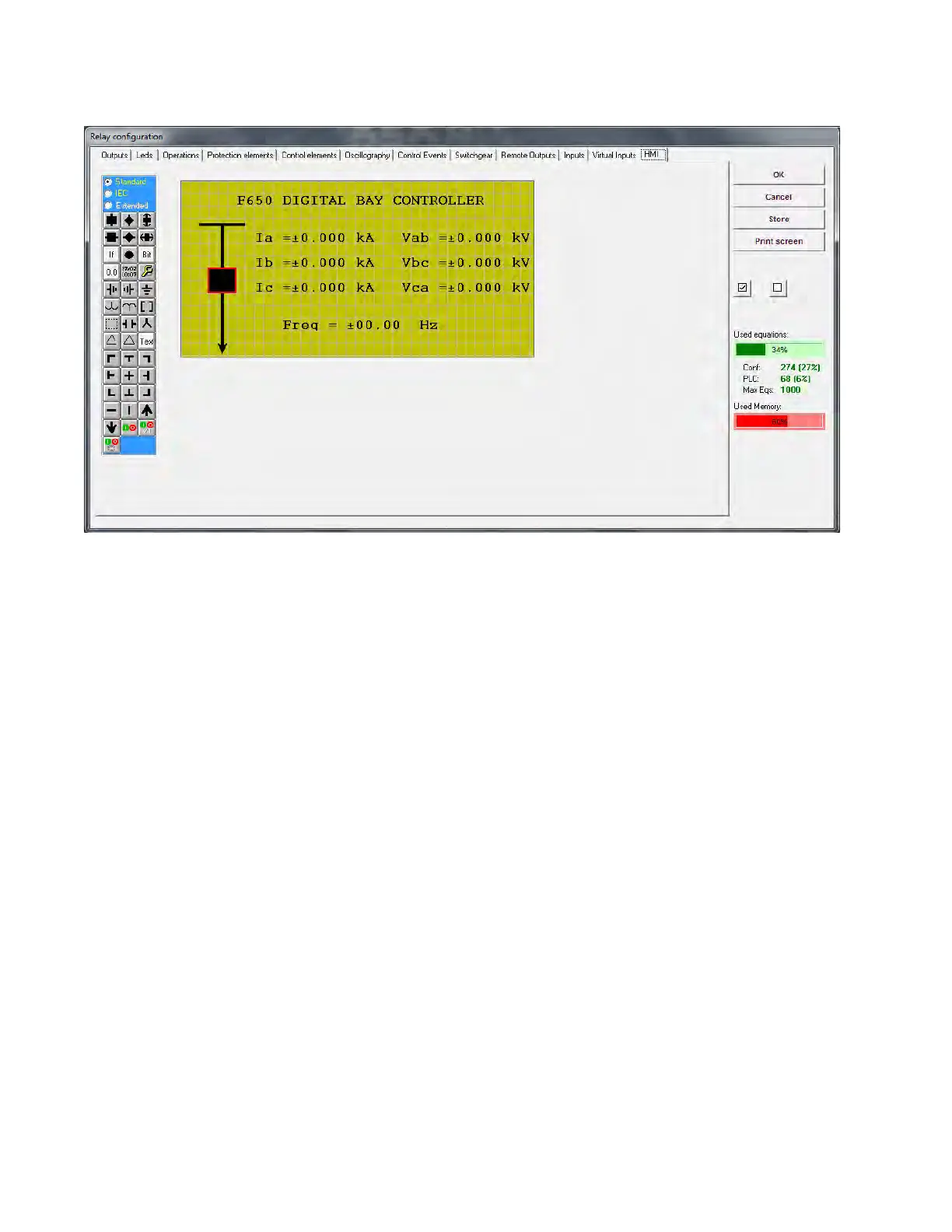

Figure 4-12: HMI configuration
4.1.7.10 Logic Configuration menu
This logic configuration allows creating more complex configurations, using the graphical PLC, than using the tables from
Relay Configuration. For file management detailed information go to section 4.1.4 File management menu.
File description:
*.pep:Header for Logic project: PLC project file containing the necessary information relative to the relay model, logic
libraries included in the project (*.lib), graphic file name (*.aut), etc.
*.aut:PLC Project file containing all the drawings used by the logic, required by 650 relay based on IEC 61131-3 standard.
Functional block diagram (FDB).
*.lib:User programmable logic objects: Library file to be included as an object in a PLC project. Logic packages that can be
stored into libraries and be distributed in different PLC projects.
