7.3.2.9 ICD/CID configuration tab
The ICD Explorer window allows the user to navigate through the ICD file. The data is organized in a hierarchical mode. The
user can browse through the data model of the relay and change desired IEC 61850 parameters like Logical Device Name,
IP address, etc.
When a parameter is selected in the ICD Explorer window then the Attributes window appears on the right part of the
screen:

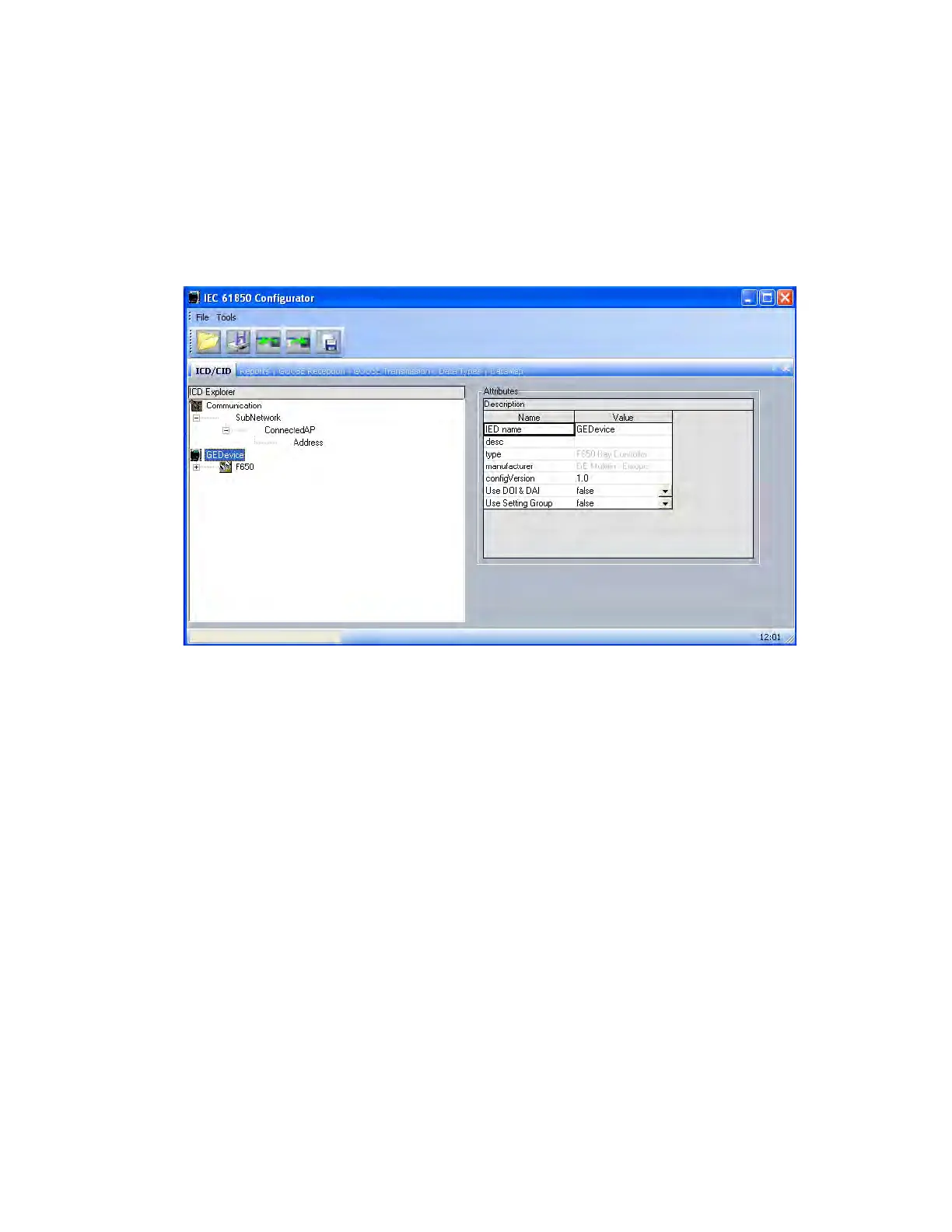

Figure 7-15: attributes window
