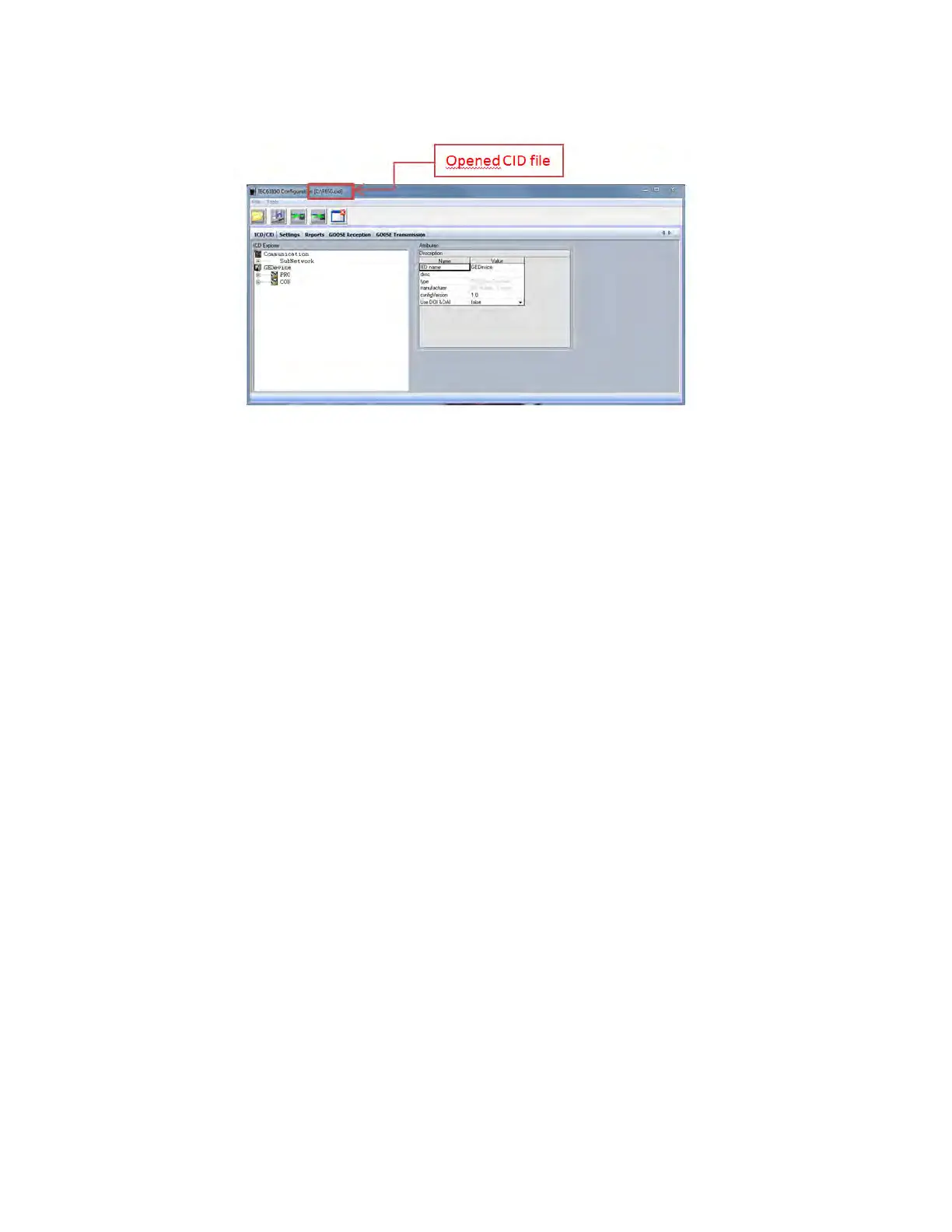

Figure 7-14: Name of opened CID file
The "IEC 61850 Configurator" window in Enervista 650 Setup is composed of four main tabs:
•ICD/CID
• Settings (For version => 7.00)
•Reports
• GOOSE Reception
• GOOSE Transmission
The following list explains the available options for each tab:
•ICD/CID
•Receive ICD file from the relay
•Send configured ICD (CID file) to the relay
•Configure deadbands (db) of measurement values (**)
•Configure control models (ctlModel) of controllable objects (**)
(**)These values are under Setting section for firmware version 7.00 or higher
• Settings: (for FW version 7.00 and higher)
•General Settings
•DAI Settings
•Configure IED Name and Logical Device Instance
•Configure IP address, netmask and gateway
•Reports
•Create Data Sets for IEC 61850 Reports
•Select between Buffered Reports or Unbuffered Reports
•Configure Reports Control Block parameters
• GOOSE Reception
•Configure reception part for GOOSE messages
• GOOSE Transmission
•Configure transmission part for GOOSE messages
