7-220 F650 DIGITAL BAY CONTROLLER GEK-106310-AF
7.3 IEC 61850 CONFIGURATOR CHAPTER 7: IEC 61850 PROTOCOL
To change the value of an attribute, double-click in the Value row of the table and introduce the new value for that
parameter.

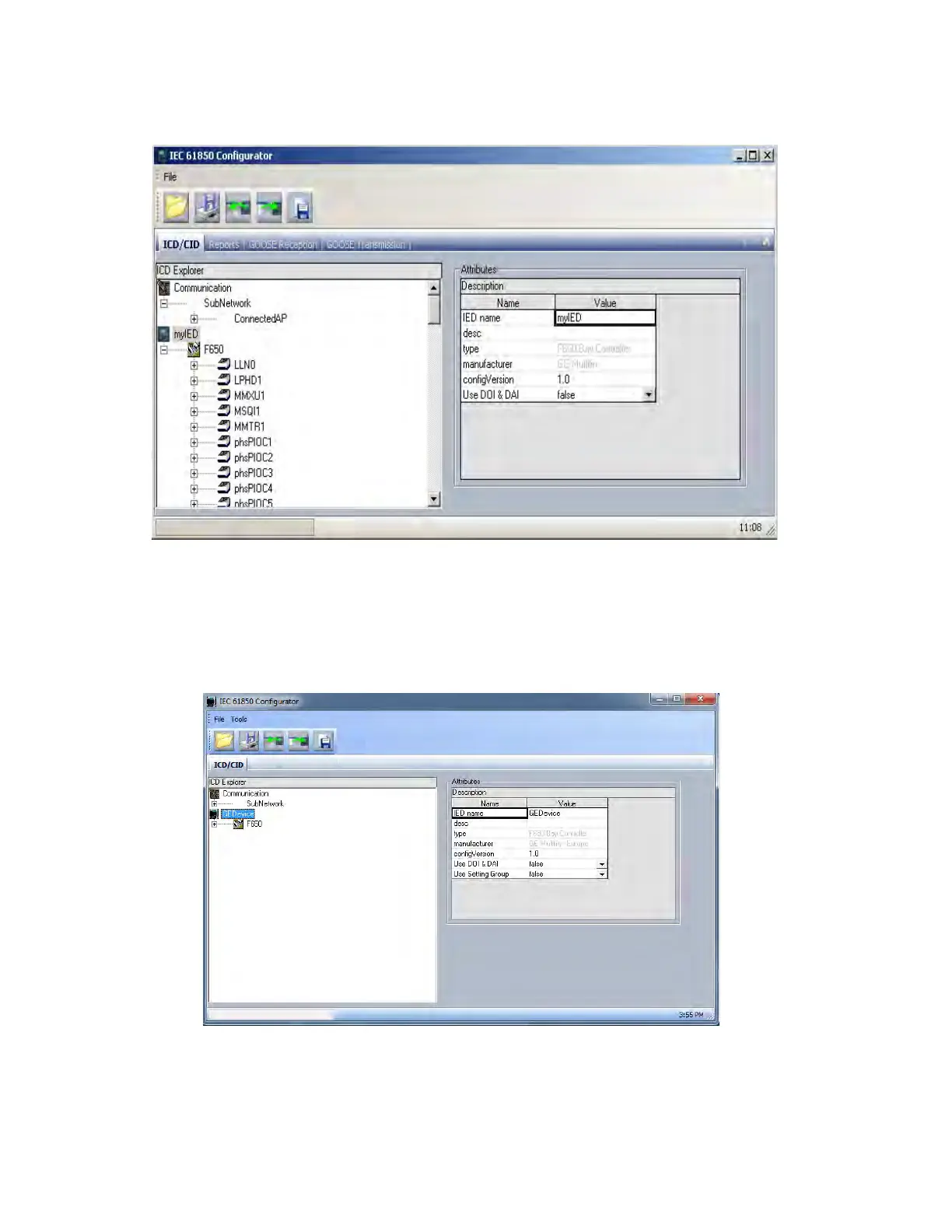

Figure 7-16: Changing the values of the attributes
GEDEVICE ATTRIBUTE WINDOW:
In the Attributes window for the GEDevice the user can set the IED name, the description, also the configuration version
and finally to set the DOI's and DAI's type of use in the relay and the use of setting group, if needed.
Figure 7-17: Attribute window for GEDevice
