7-248 F650 DIGITAL BAY CONTROLLER GEK-106310-AF
7.3 IEC 61850 CONFIGURATOR CHAPTER 7: IEC 61850 PROTOCOL

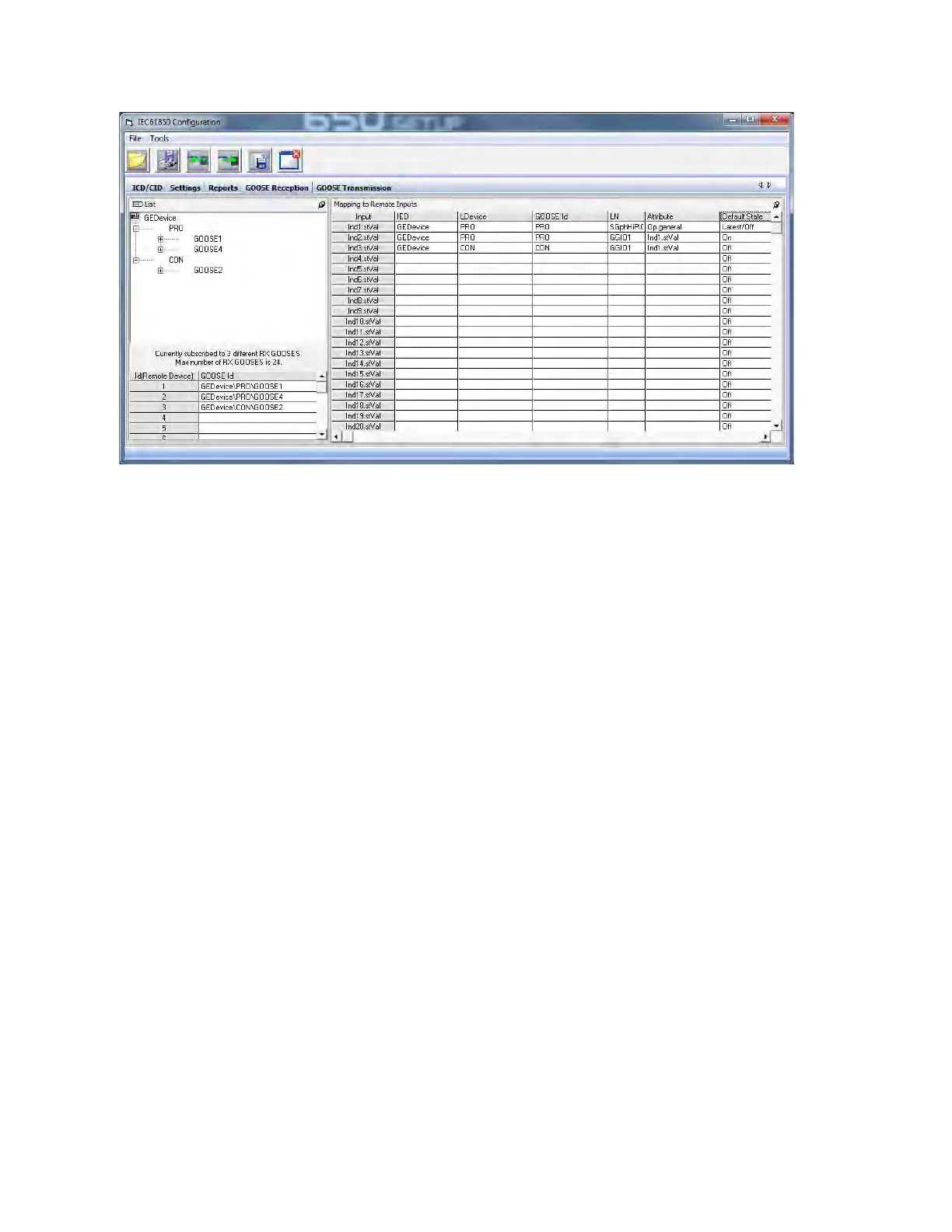

Figure 7-37: Example of GOOSE reception configuration (V7.XX)
The main steps for configuration of reception gooses are described below:
1. Go to the IEC61850 Configurator, GOOSE reception tab.
2. Import the CID files from all relays that this relay can receive from.
3. New GOOSE ID appears with “IEDName + LD device Inst + GOOSE Id of Publisher”.
4. Drag and drop the digital data of interest from a GOOSE transmission int
o one of the 650+ GOOSE receptions.
5. Repeat for up to a maximum of 24 receptions.
