CHAPTER 7: IEC 61850 PROTOCOL 7.3 IEC 61850 CONFIGURATOR
GEK-106310-AF F650 DIGITAL BAY CONTROLLER 7-247
• Add IED, to add a new IED
• Remove IED, to remove existing IEDs
• Update the IED from disk, in case the configuration of that device has changed and we want to update it in our files.
•Export ICD to disk
• Import IED's from SCD, in case the ICD data is included in a SCD file.

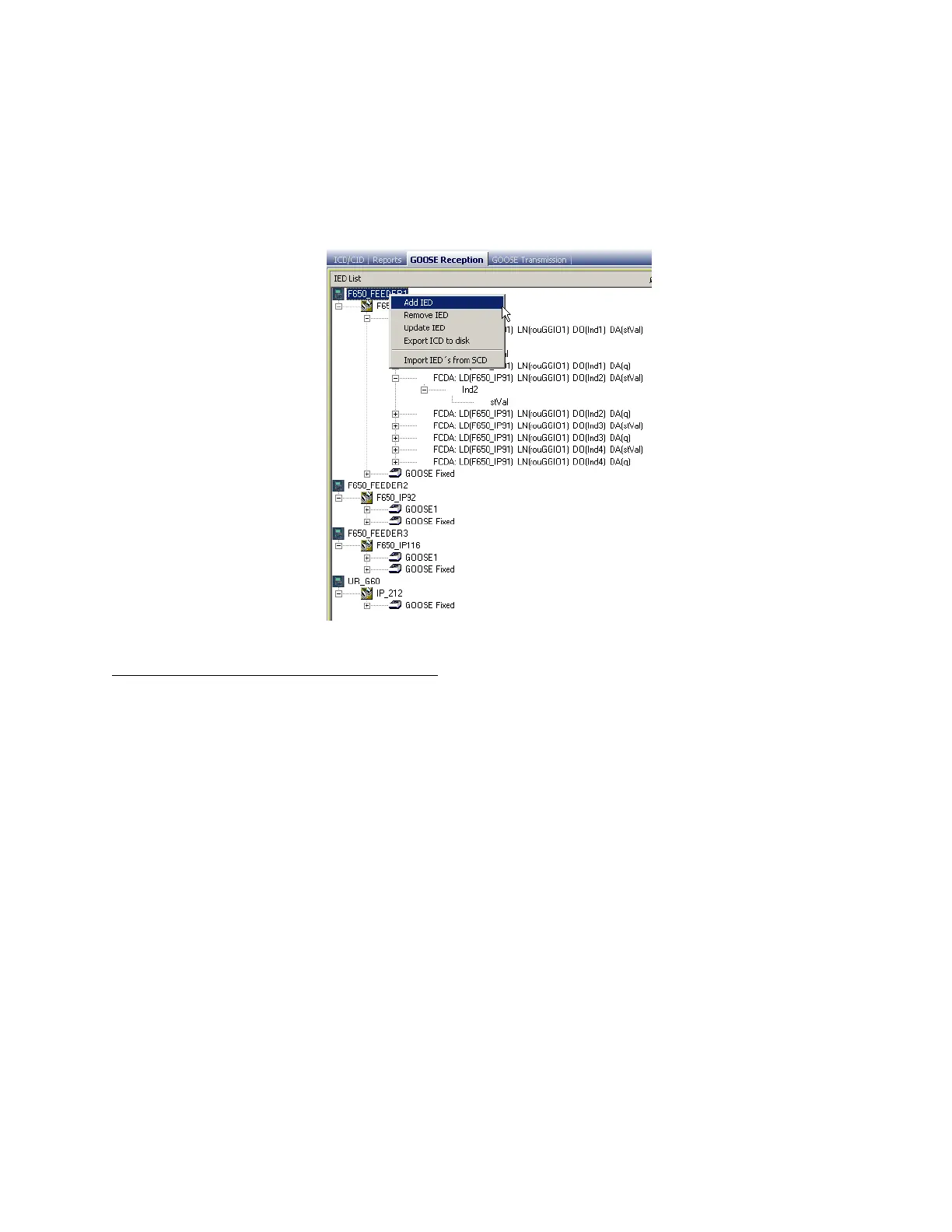

Figure 7-36: Example of GOOSE reception options
GOOSE subscription for FW versions higher than 7.00:
The IEC 61850 Configurator in the Enervista 650 Setup software is used to configure GOOSE reception. The maximum
number of reception GOOSEs the 650 relay (for firmware versions above 7.00) is 24, with up to 64 digital/analog items per
GOOSE that can be mapped into any of the 32 remote GOOSE digital inputs, 32 remote inputs or 16 remote GOOSE analog
inputs.
