7-246 F650 DIGITAL BAY CONTROLLER GEK-106310-AF
7.3 IEC 61850 CONFIGURATOR CHAPTER 7: IEC 61850 PROTOCOL
Configuring GOOSE Reception
In order to configure in F650 reception of configurable GOOSE it is necessary to have ICD/CID file of sending IED(s). It
means that first transmission GOOSE has to completely set up in the sender and after that the ICD/CID has to be imported
to "IEC 61850 Configurator" tool of F650.
In the IED list panel, right-click and select Add IED to add a new IED for GOOSE reception.

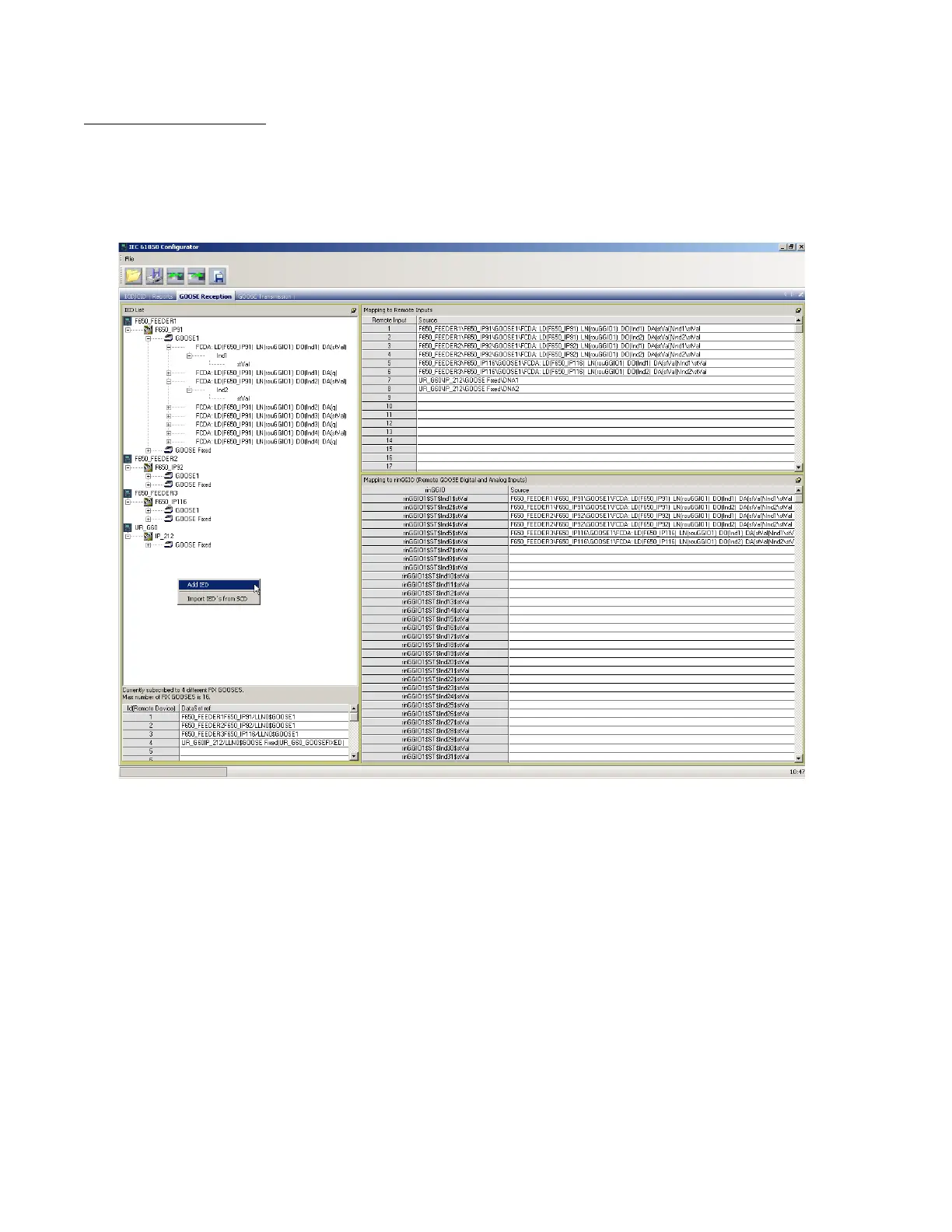

Figure 7-35: Example of GOOSE reception configuration
A window is displayed allowing you to select an *.icd or *.cid file from disk, or to import the icd file from an SCD.
When working with different devices it is advisable to set the IED Name to the position name of the device, to avoid having
different IEDs with the same name
After including all icd files from the devices which the relay is going to receive the data the user can map the data to the
remote inputs or to rinGGIO.
GOOSE configurable values can be mapped either to remote inputs or to rinGGIO tabs.
GOOSE fixed values can only be mapped to the Remote Inputs tab
In the GOOSE reception configuration tab, the user perform the following options:
