CHAPTER 5: SETPOINTS 5.9 RELAY CONFIGURATION
GEK-106310-AF F650 DIGITAL BAY CONTROLLER 5-161
This is done under Setpoint > Relay Configuration > Output, selecting an output and choosing the internal signal
OPERATION BIT 1, which corresponds to the bit that is activated when the related operation is executed.

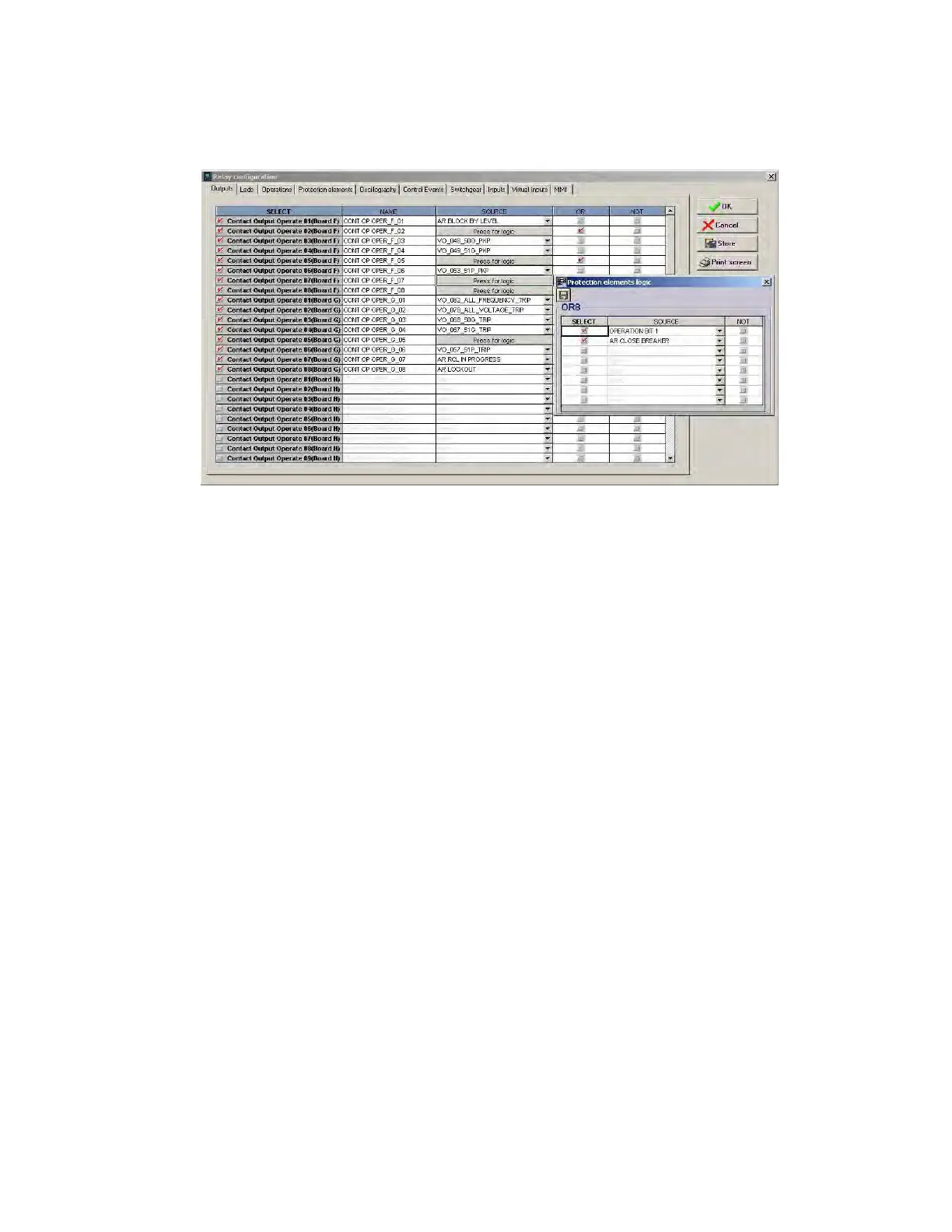

Figure 5-50: Contact output configuration
Note: Operations time out for confirmation
Configurable screen in graphical HMI: In the relay HMI the configurable objects wait one minute for confirmation after
operation selection. The object is blinking for one minute. After that time, the object is deselected.
Front Keys: In operations performed by front keys, the time out for confirmation is 10 seconds.
