CHAPTER 5: SETPOINTS 5.13 IEC 60870-5-103 CONFIGURATION
GEK-106310-AF F650 DIGITAL BAY CONTROLLER 5-195

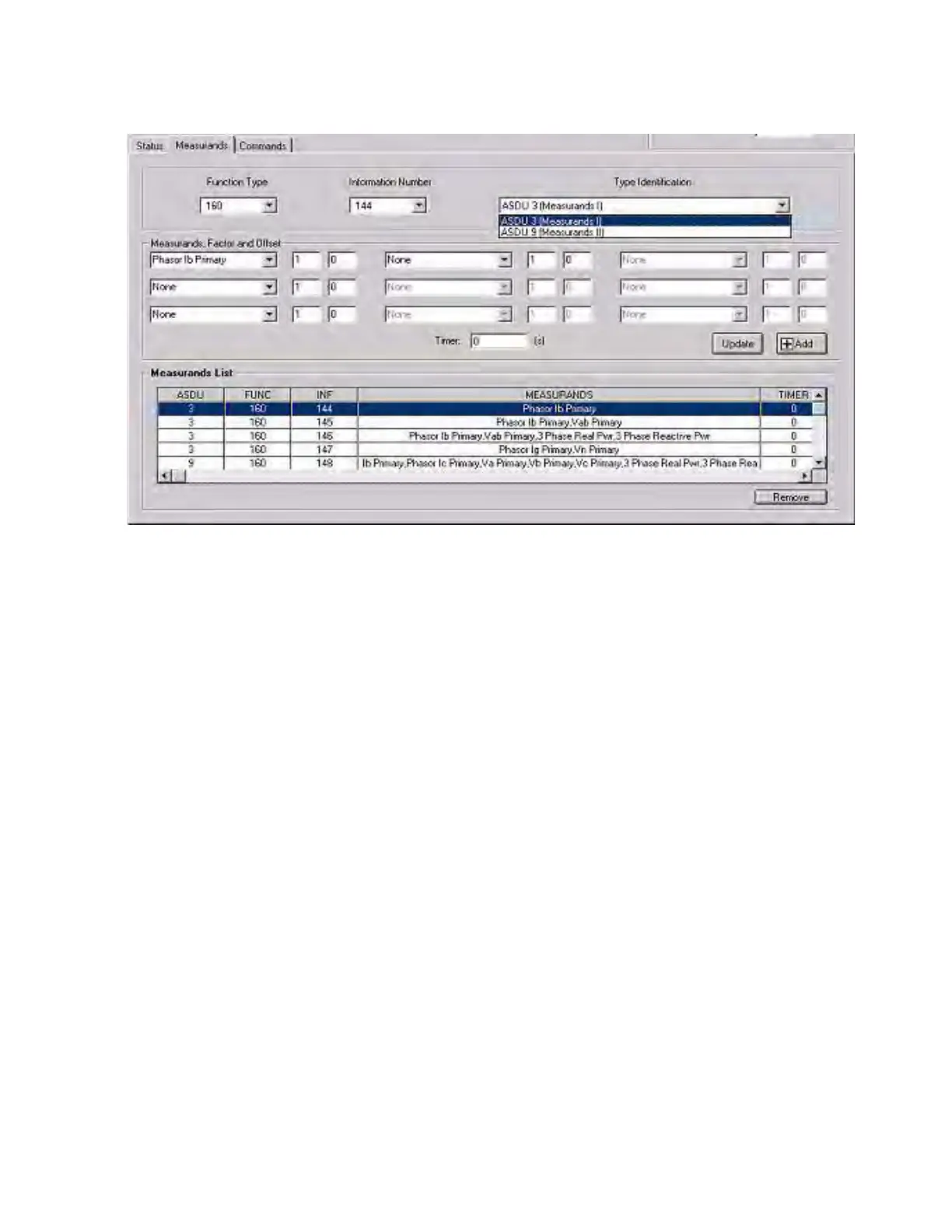

Figure 5-69: Measurand configuration for IEC 60870-5-103 protocol
Commands
All configurable commands and virtual inputs self-reset are available in order to be mapped using the EnerVista 650 Setup
program. It would be possible to choose the desired command for the ON state and the same or different command for
the OFF state.
You can select the Information Number <1..255> and the Function Type <0..255>, but the Identification Type 20 (General
Commands) is fixed and it is used to send a command to the slave station.
Clicking the Add button the configured data is added to the Operations List. The processes of removing, updating and
saving are done in the same way as for digital states and for measurands.
