7-234 F650 DIGITAL BAY CONTROLLER GEK-106310-AF
7.3 IEC 61850 CONFIGURATOR CHAPTER 7: IEC 61850 PROTOCOL

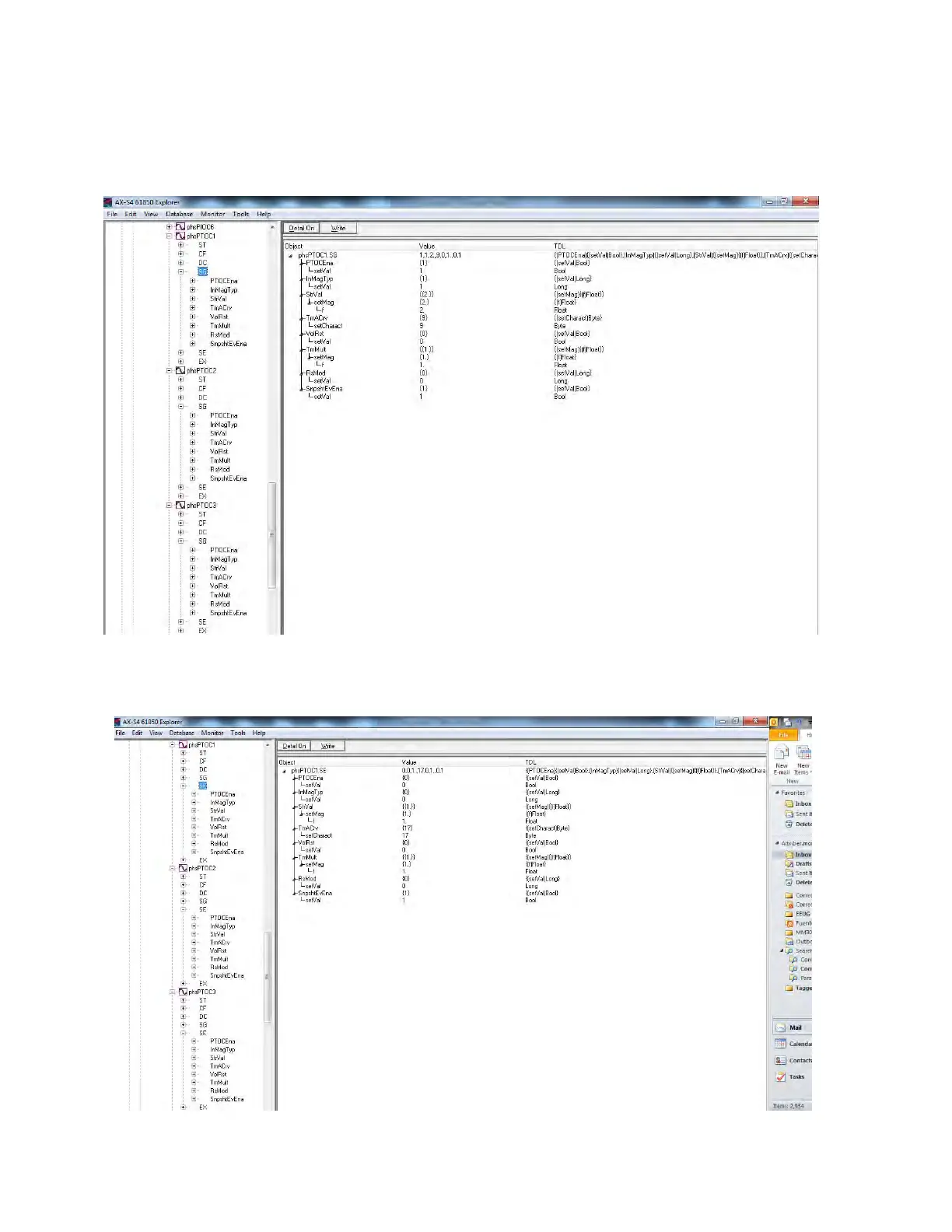

As it is shown in the figure, the values of the settings of the setting group indicated with the ActSg are the ones with the FC
= SG in Logical Nodes phPTOC1, phPTOC2 and phPTOC3. Therefore the ones used by the high level of Phase Time
Overcurrent protection function in the relay.
On the other hand, as it is shown in the figure, the values of the settings of the setting group indicated with the EditSg are
the ones with the FC = SE in Logical Nodes phPTOC1, phPTOC2 and phPTOC3.
