7-240 F650 DIGITAL BAY CONTROLLER GEK-106310-AF
7.3 IEC 61850 CONFIGURATOR CHAPTER 7: IEC 61850 PROTOCOL

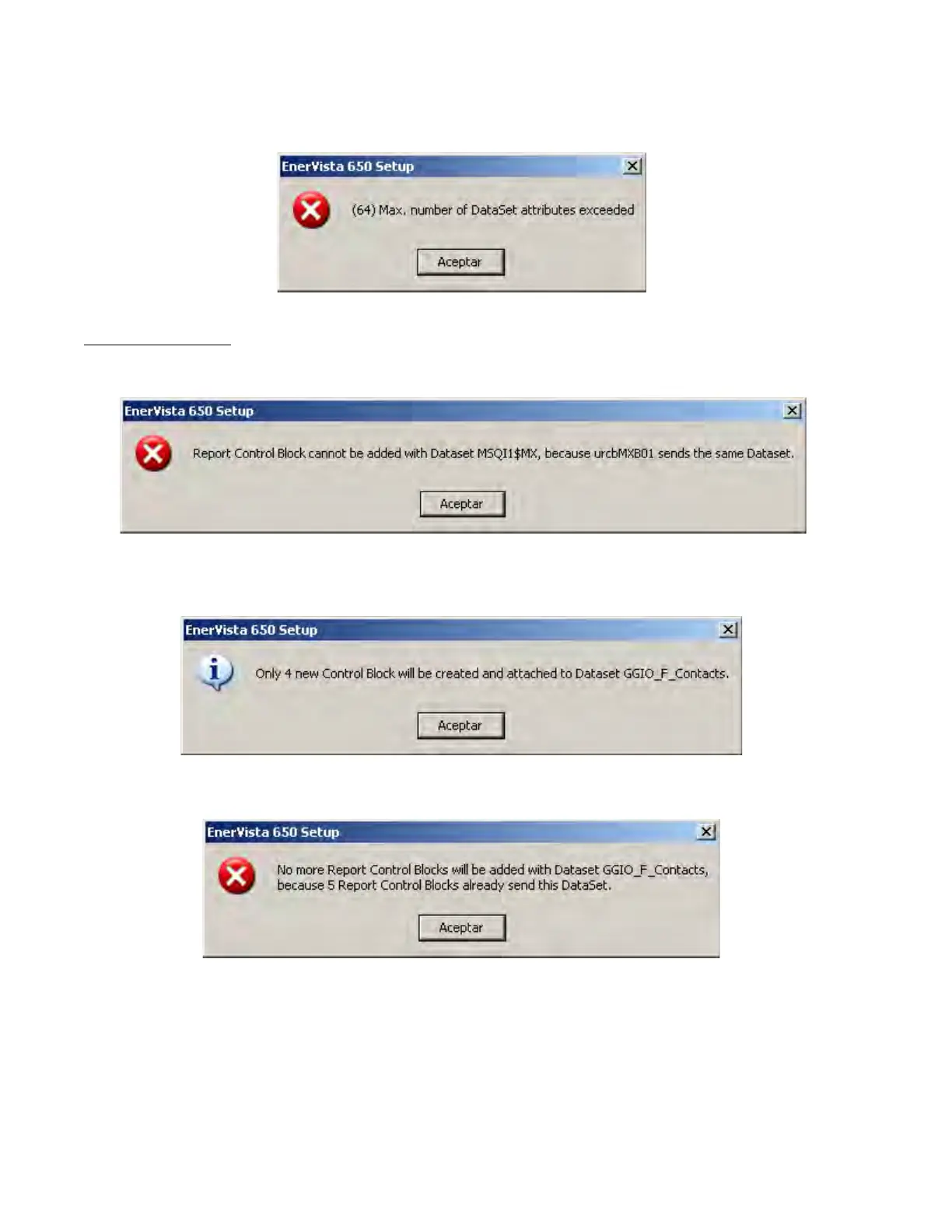

If the user tries to add more than the maximum number of elements permitted to the Data Set, the following error id
displayed:
For versions below 7.00:
When trying to attach a Data Set to a URBC when it is already attached to another URCB, the application gives the
following error:
When attaching a Data Set to too many BRCB's the IEC 61850 Configurator creates new BRCB's up to the maximum total
of 5 BRCB's attached the Data Set. The following warning id displayed:
When attaching a BRCB to a Data Set that already has 5 BRCB's attached, the following error is displayed:
