CHAPTER 9: BOOTCODE AND FIRMWARE UPGRADE 9.1 FIRMWARE UPGRADE VERSIONS BELOW 7.00.
GEK-106310-AF F650 DIGITAL BAY CONTROLLER 9-11

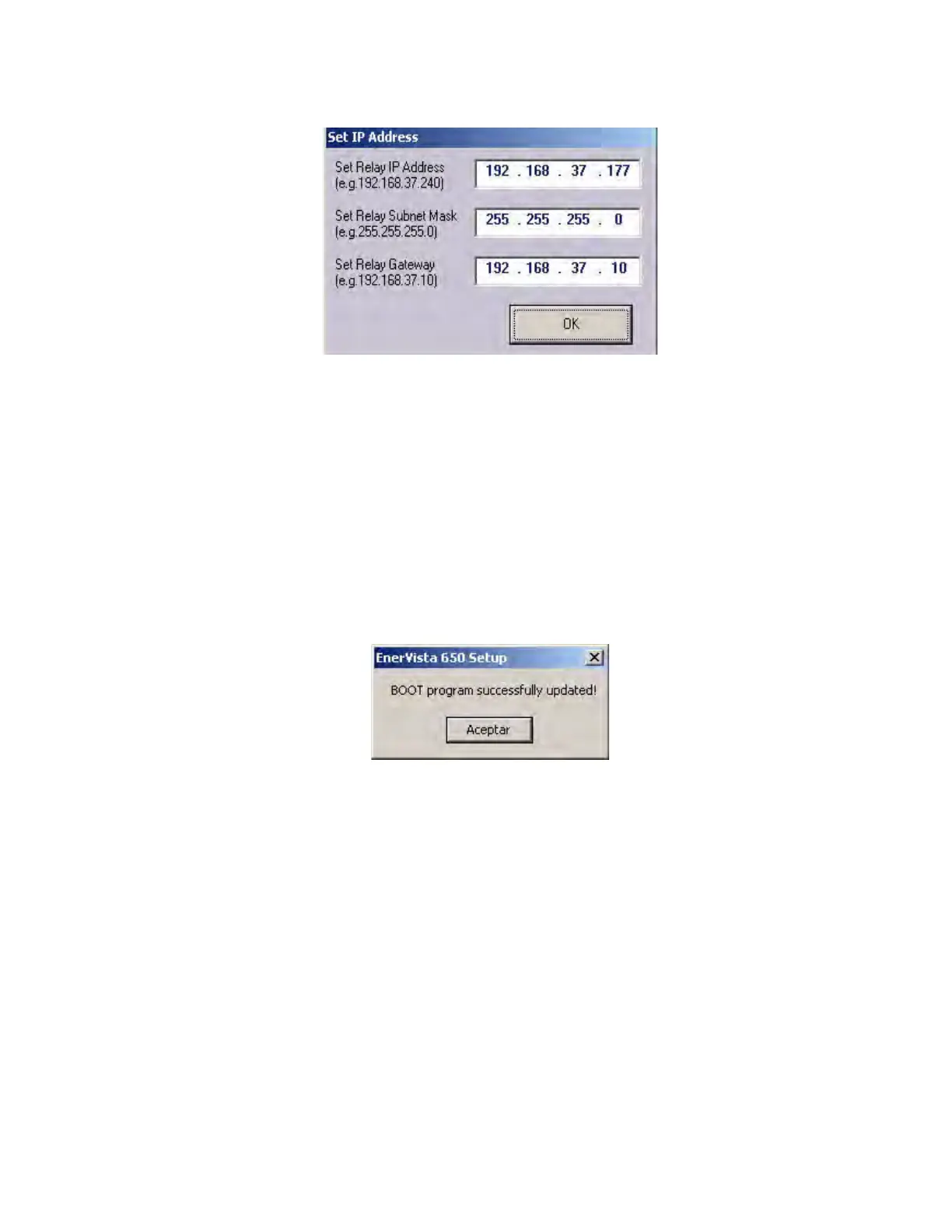

Figure 9-10: IP address setpoint window
These values should match the LAN structure where the relay will be connected.
The relay IP address should have the first three octets corresponding with the gateway and the last octet must be a
free IP address reserved to the relay to avoid possible collisions with other devices.
The gateway must be the one used in the LAN structure connecting the relay
21. After assigning the Ethernet parameters, the upgrade of the boot code is complete and successful.
22. A window is displayed with the message: Settin
g Default IP address, followed by:
Figure 9-11: BOOTware upgrade successful process
After boot code upgrade, the equipment firmware must also be upgraded.
