3-8 F650 DIGITAL BAY CONTROLLER GEK-106310-AF
3.3 MECHANICAL DESCRIPTION CHAPTER 3: HARDWARE

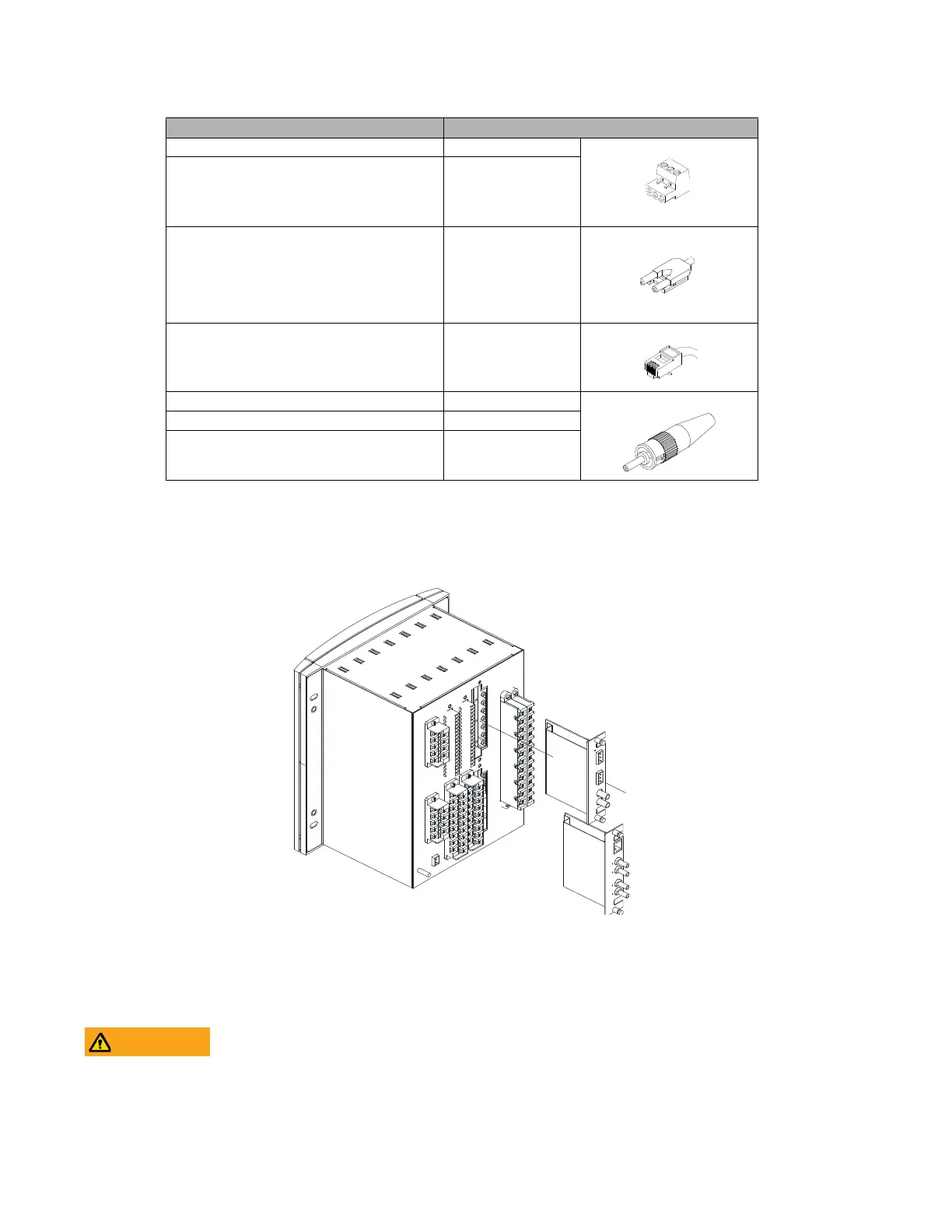

Figure 3-6: Communications media selector guide
Communication boards are installed at the rear part of the unit, the upper port being reserved for the asynchronous
communications board and CAN, and the lower port for the Ethernet board in any of its configurations.
Figure 3-7: Detail of insertion/extraction of communication modules
Note: For version 7.00 and above, only the serial card can be removed
TYPE OF COMMUNICATION CONNECTOR
RS485 / CAN cable Plug-in, 3 poles.
IRIG B Plug-in, 2 poles.
Plastic fiber optic Versatile Link
Ethernet 10/100 UTP (10/100BaseTX) RJ45, Class 5.
Glass fiber optic (100BaseFX) ST
Ethernet 100 FX (100BaseFX) ST
CAN Fiber ST
The transformer module housing the VTs and CTs is already connected to a female connector
screwed to the case that incorporates shorting bars in the current inputs, so that it can be
extracted without the need to short-circuit the currents externally. It is very important, for
safety reasons, not to change or switch the terminals for CTs and VTs.
