C.5 DNP CONFIGURATION EXAMPLES APPENDIX C: DNP 3.0 PROTOCOL FOR F650

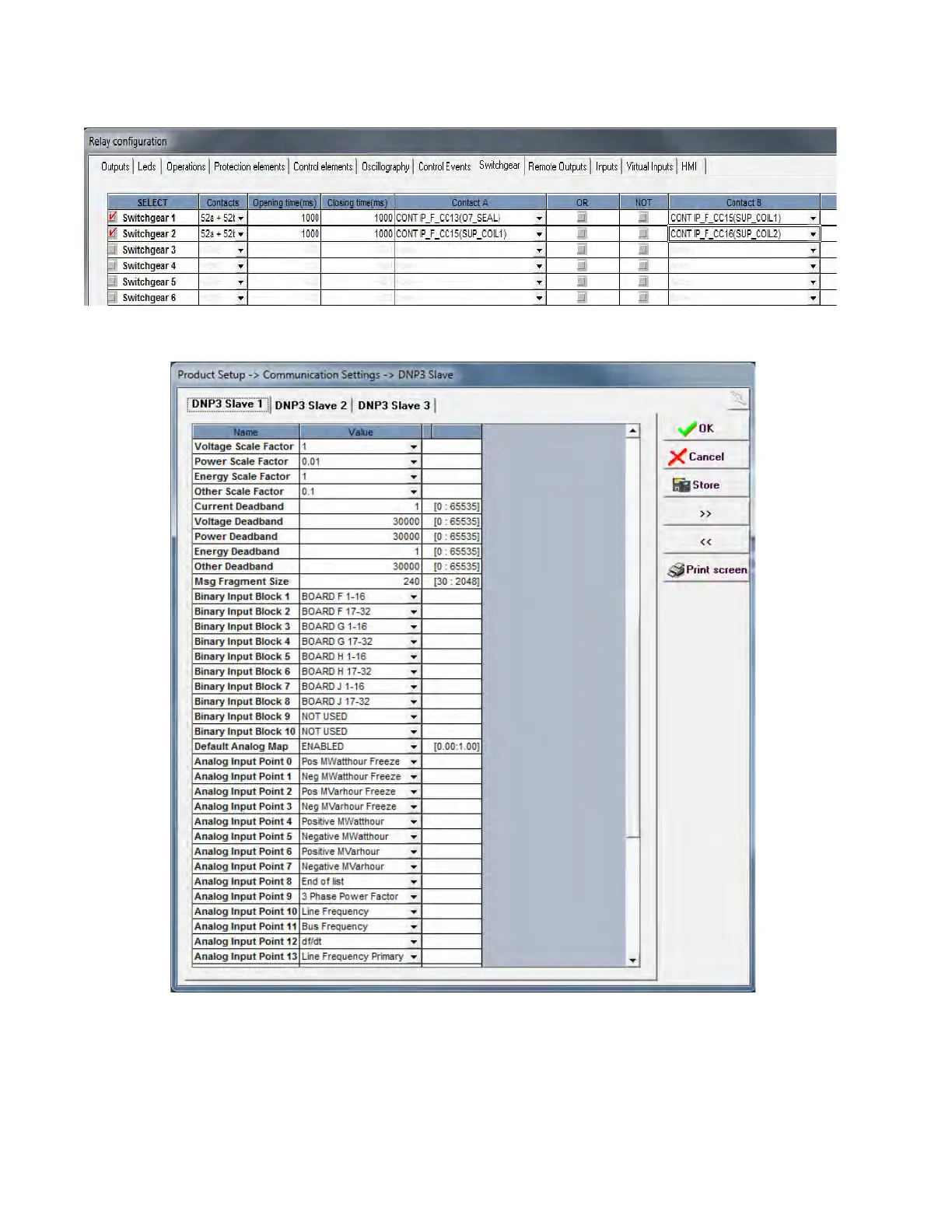

Figure C-2: CONFIGURATION OF SWITCHGEAR
Figure 0–1: CONFIGURATION OF DNP BINARY INPUT BLOCKS
In the example presented in this chapter the F650 relay ha
s 48 Binary Input points, as shown in the table below.
