IBM Storwize V7000 Unified Problem Determination Guide

v ▌A▐ File module 1
v ▌B▐ File module 2
v ▌C▐ Storwize V7000 control enclosure
v ▌1▐ File module1 - Fibre Channel port 1
v ▌2▐ File module 1 - Fibre Channel port 2
v ▌3▐ File module 2 - Fibre Channel port 1
v ▌4▐ File module 2 - Fibre Channel port 2
v ▌5▐ Upper node canister - Fibre Channel port 1
v ▌6▐ Upper node canister - Fibre Channel port 2
v ▌7▐ Lower node canister - Fibre Channel port 1
v ▌8▐ Lower node canister - Fibre Channel port 2
1
2
3
4
5
6
1
2
3
4
5
6
ifs00067
CAUTIO N
CAUTIO NCAUTIO N
CAUT IO N
Disconnect all
supply power for
complete isolation
Disconnect all
supply power for
complete isolation
Disconnect all
supply power for
complete isolation
Disconnect all
supply power for
complete isolation
2
1
A
3
4
B
C
7
8
5
6

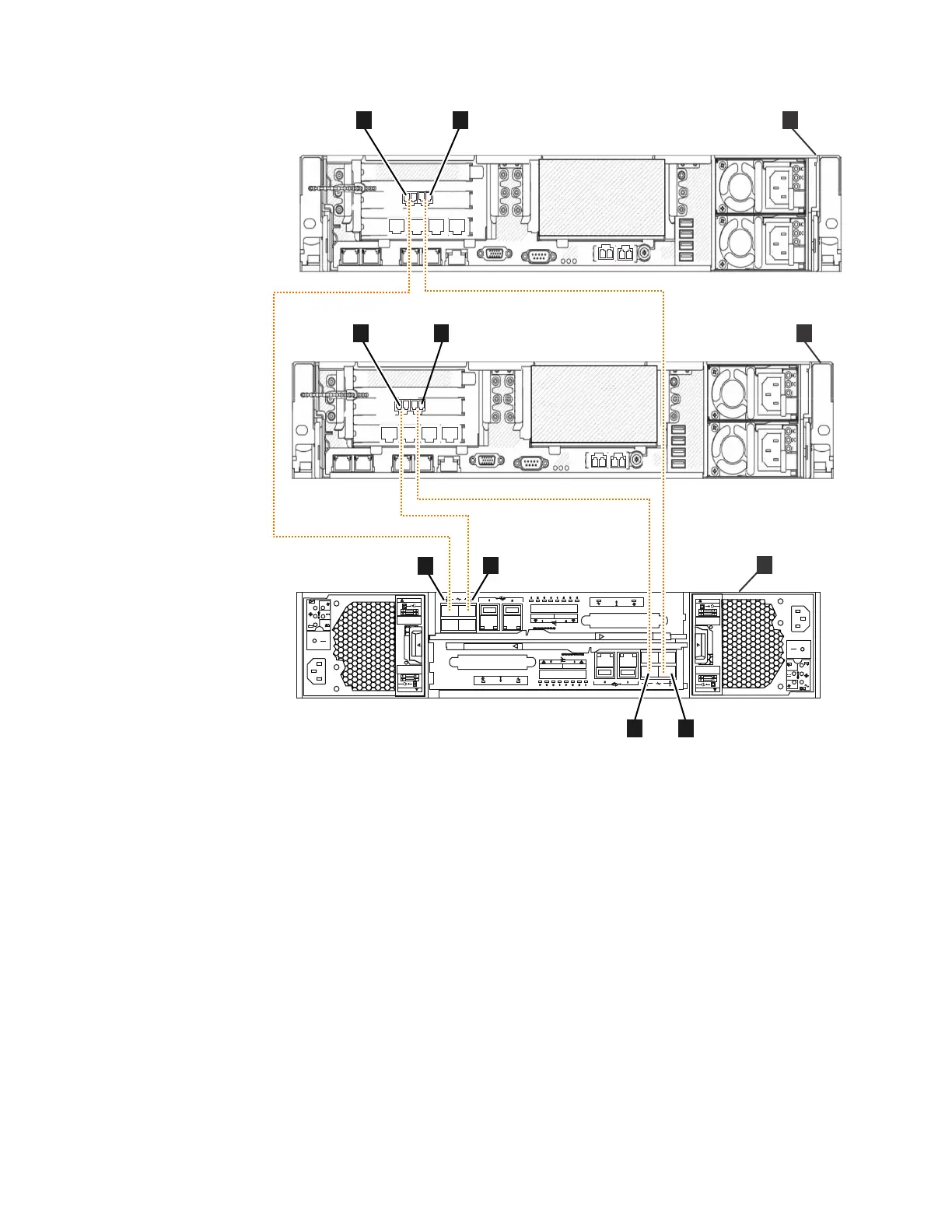

Figure 41. Connecting the file modules to the Storwize V7000 Gen1 control enclosure using
Fibre Channel cables
Chapter 3. Getting started troubleshooting 73

IBM Storwize V7000 Unified Specifications

General

Model	IBM Storwize V7000 Unified
Storage Type	Unified Storage
RAID Levels	RAID 0, 1, 5, 6, 10
Form Factor	2U
Drive Types Supported	SAS, SSD
Maximum Drives	504
Network Protocols	iSCSI, FC, FCoE
Drive Bays	24 per enclosure
Host Interface	8 Gb FC, 1 Gb/10 Gb iSCSI
File Protocols	NFS, CIFS
Block Protocols	iSCSI, Fibre Channel
Type	Unified Storage
Maximum Host Ports	16
Operating System Support	VMware, Microsoft Windows, Linux, AIX
Data Services	Thin provisioning, replication
Power Supply	Redundant power supplies
Host Interfaces	8 Gbps Fibre Channel, 10 Gbps iSCSI, 1 Gbps iSCSI
