6. Pull out the handle to its full extension.
7. Grasp canister and pull it out.
8. Insert the new canister into the slot with the handle pointing towards the
center of the slot. Insert the unit in the same orientation as the one that you
removed.
9. Push the canister back into the slot until the handle starts to move.
10. Finish inserting the canister by closing the handle until the locking catch clicks
into place. Make sure that the canister is firmly and correctly seated,
otherwise this can lead to problems.
11. Reattach the SAS cables.
Replacing an SFP transceiver
Remove and replace an SFP transceiver.
Replacing an SFP transceiver in a Storwize V7000 2076-524
control enclosure
When a failure occurs on an optical link, the SFP transceiver in the port providing
the link might need to be replaced. To replace a faulty SFP transceiver with a new
one received from CRU or FRU stock, use this procedure.
Before you begin
Even though many of these components are hot-swappable, they are intended to
be used only when your system is not active (no I/O operations). If your system is
powered on and processing I/O operations, go to the management GUI and follow
the fix procedures. Initiating the replacement actions without the assistance of the
fix procedures can result in loss of data or loss of access to data.
Be careful when you are replacing the hardware components that are located in the
back of the system that you do not inadvertently disturb or remove any cables that
you are not instructed to remove.

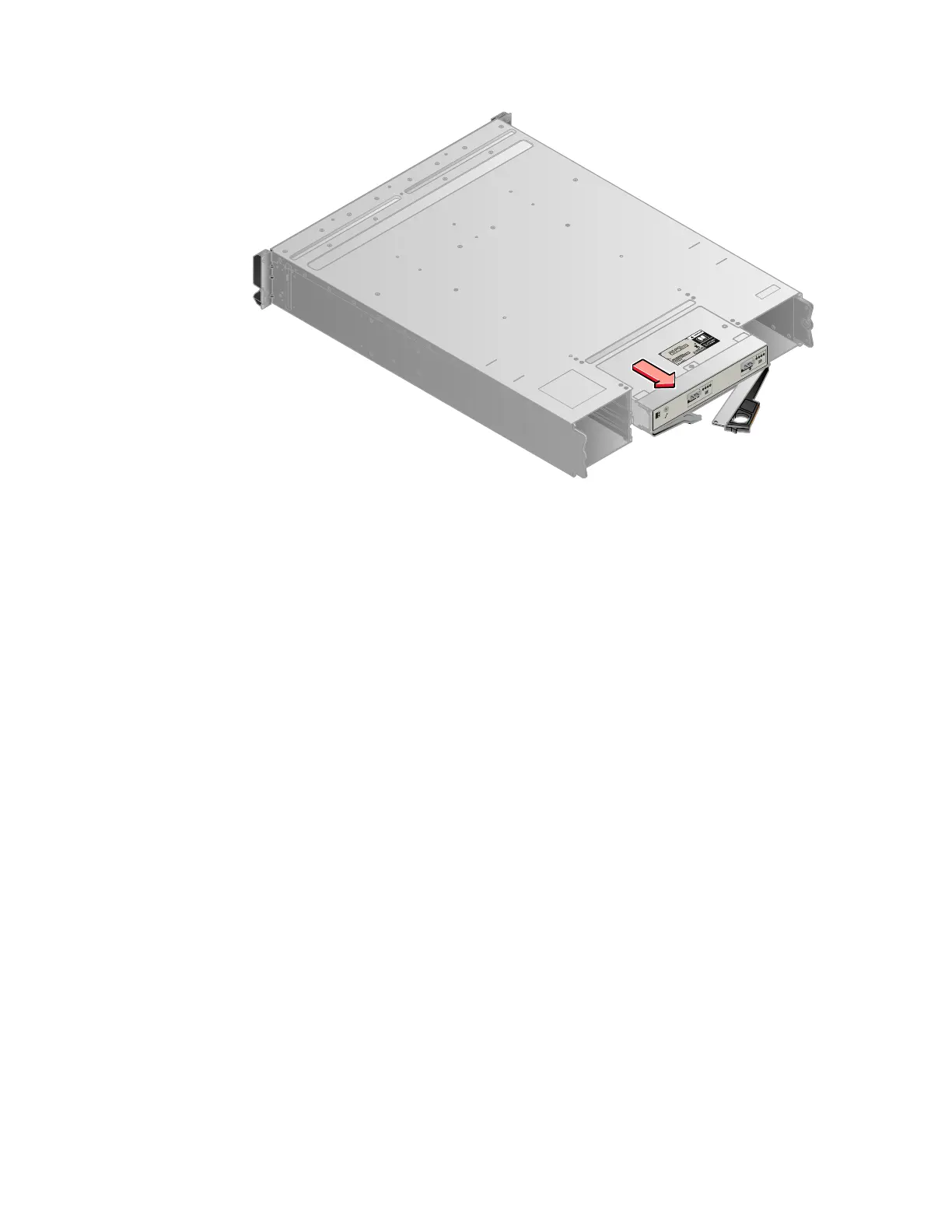

Figure 83. Removing the canister from the enclosure
302 Storwize V7000 Unified: Problem Determination Guide 2073-720
