Procedure
To replace the support rails, complete the following steps:
1. Remove the enclosure.
2. Record the location of the rail assembly in the rack cabinet.
3. Working from the back of the rack cabinet, remove the clamping screw▌1▐
from the rail assembly on both sides of the rack cabinet.
4. Working from the front of the rack cabinet, remove the clamping screw from
the rail assembly on both sides of the rack cabinet.
5. From one side of the rack cabinet, grip the rail and slide the rail pieces
together to shorten the rail.
6. Disengage the rail location pins ▌2▐.
7. From the other side the rack cabinet, grip the rail and slide the rail pieces
together to shorten the rail.
8. Disengage the rail location pins ▌2▐.
9. Starting from the location of the previous rail assembly, align the bottom of
the rail with the bottom of the two rack units. Insert the rail location pins
through the holes in the rack cabinet.
10. Insert a clamping screw into the upper mounting hole between the rail
location pins.
11. Tighten the screw to secure the rail to the rack.
12. Working from the rear of the rack cabinet, extend the rail that you secured to
the front to align the bottom of the rail with the bottom of the two rack units.
Note: Ensure that the rail is level between the front and the back.
13. Insert the rail location pins through the holes in the rack cabinet.
14. Insert a clamping screw into the upper mounting hole between the rail
location pins.
15. Tighten the screw to secure the rail to the rack from the back side.
16. Repeat the steps to secure the opposite rail to the rack cabinet.
Replacing node canister memory modules
Remove and replace node canister memory modules.

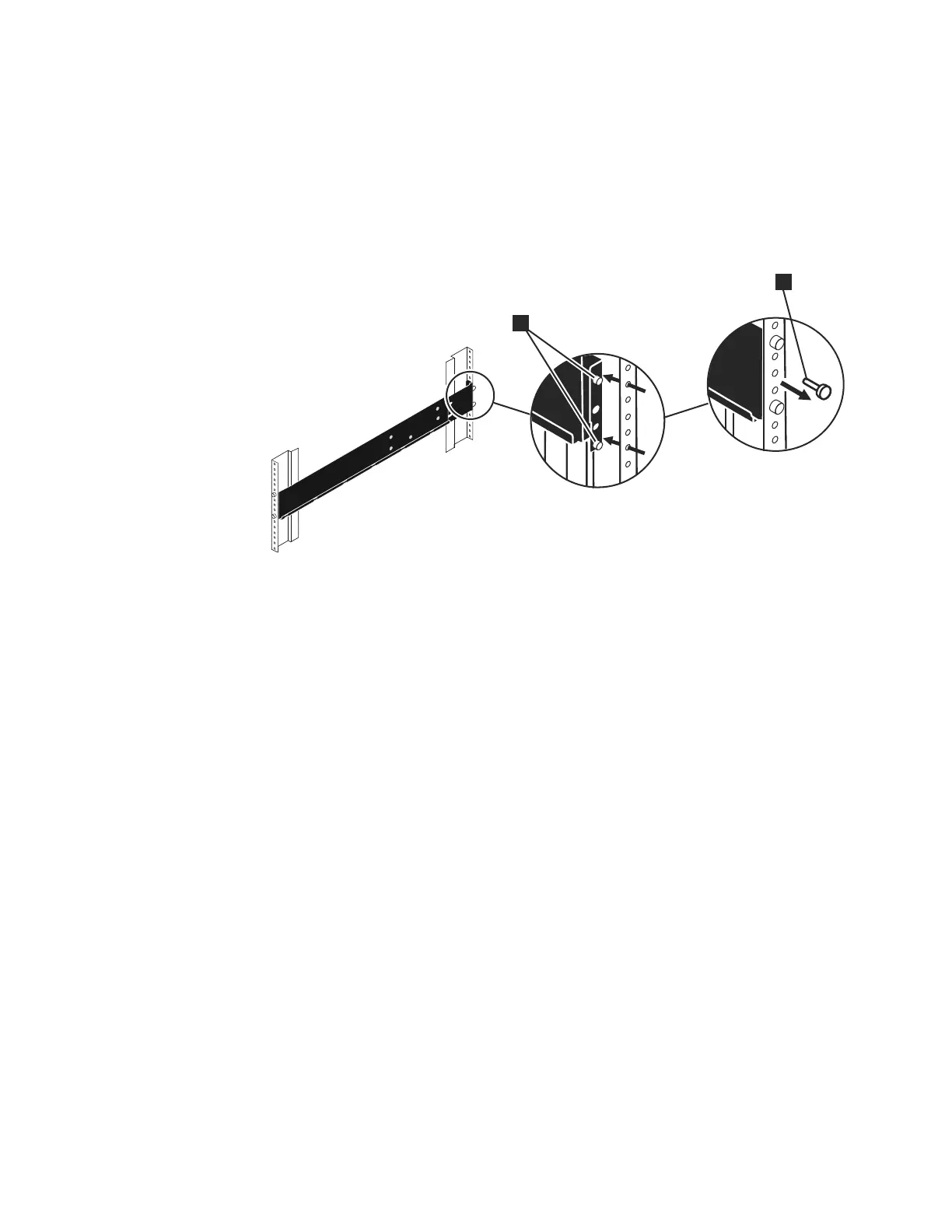

Figure 115. Removing a rail assembly from a rack cabinet
Chapter 5. Control enclosure 369
